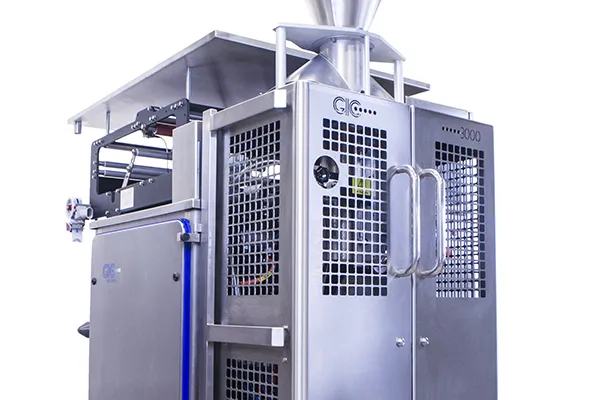

GIC CUB - Vertical Form Fill & Seal Machine

GIC CUB - Vertical Form Fill & Seal Machine

• Very compact design.
• Low cost of ownership, proven robust mechanical and electrical design.
• High-quality materials used for the most demanding environments.
• Single-phase power supply (240V as standard).
• Simple to operate Allen Bradley HMI touchscreen.
• Maximum access for clean-down and maintenance.

Standard Features

PLC Control System | Motorised single belt wrapper feed | Touch-screen HMI interface | Film feed tracking adjustment | Reel run out sensor | Pneumatically operated horizontal seal jaws | ‘Product in seal’ detection.

Applications

The GIC CUB has been used in the following applications:

Bullion (Coin) | Confectionery | Hardware | Cereals | Powders

Also applicable to:
Powders | Dry free-flowing products

Technical Specification

Weight : 550kg
Maximum Pack Sizes: 150mm wide x 250mm long
WeightMaximum Speed: 60 packs per min
Power Supply: 240V single phase 13A
Compressed Air: Free air – 0.27 cubic mtrs/min dependent on speed and application
Finish: Black Hard anodised aluminium frame and painted mild steel
Packaging Materials: All suitable heat sealable materials including laminates
Maximum Reel Outer: 330mm
Reel Core diameter: 76mm
