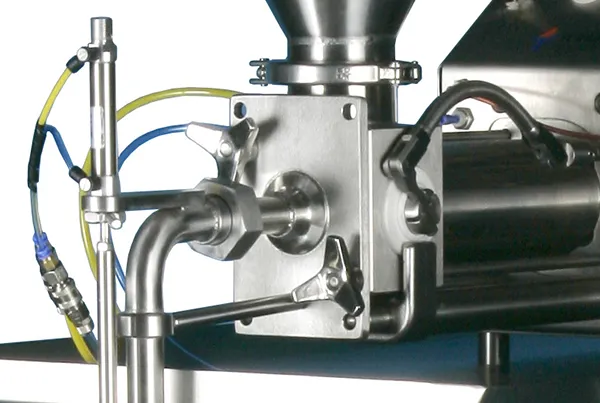

GIC HIGH CARE CUB - Vertical Form Fill & Seal Machine

GIC HIGH CARE CUB - Vertical Form Fill & Seal Machine

• Designed for high care food environment in full stainless steel.
• Maximum access for clean-down and maintenance.
• Very compact design.
• Low cost of ownership, proven robust mechanical and electrical design.
• High Quality materials used for the most demanding environment.
• Single phase power supply (240V as standard).
• Simple to operate Allen Bradley HMI touch-screen.

Standard Features

• • • PLC Control System
    • Reel run out sensor
    • Motorised single belt wrapper feed
    • Allen Bradley HMI touch-screen
    • Film feed tracking adjustment
    • Pneumatically operated horizontal seal jaws
    • “Product in seal” detection

Optional Features

• • • Print Registration unit
    • Discharge pack elevator
    • Overprinters
    • Feed Systems (dependent on application)

Applications

• • • Sauces
    • Fresh & Frozen Foods
    • Powders
    • Liquids
    • Confectionery

Pack Styles

• • • Pillow
    • Gusset

Technical Specification

• • • Weight : 550kg
    • Maximum Pack Sizes: 150mm wide x 250mm long
    • Maximum Speed: 60 packs per min
    • Power Supply: 240V single phase 13A
    • Compressed Air: Free air – 0.27 cubic mtrs/min dependent on speed and application
    • Finish: Full Stainless Steel (please note that there are a limited number of components that for technical reasons cannot be manufactured from stainless steel).
    • Packaging Materials: All suitable heat sealable materials including laminates
    • Maximum Reel Outer: 330mm
    • Reel Core Diameter: 76mm
