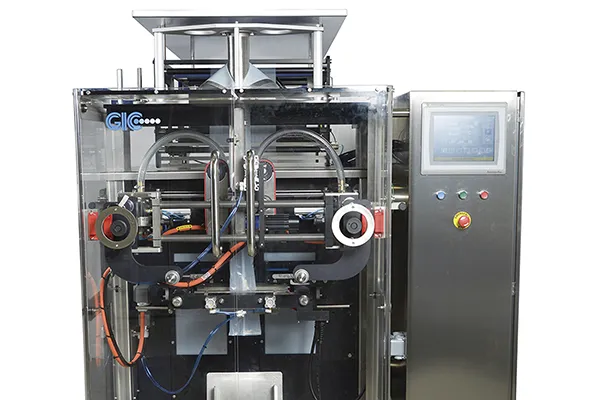

GIC 8100 - Vertical Form Fill & Seal Machine

GIC 8100 - Vertical Form Fill & Seal Machine

The GIC3100 is ideal for high speed bag styles upto 250mm wide, such as pillow gussetted and block bottom. The machine can also be manufactured to accomodate quad, doy and zip applications.

Standard Features

• • • 10 inch Operator friendly HMI colour touch screen with multi access facility
    • Full latest specification Allen Bradley Servo Drives
    • Enclosed main frame and sealed panel
    • Stainless steel and hard anodiised aluminimum finish
    • Low Level Drop on air shaft
    • Film Splice
    • Tooless size change facility
    • Reel run out detection
    • Fully integrated coder station
    • Fully integrated labeller station
    • Product in seal detection
    • Heat Seal Crimp Jaws with out of tolerance temperature sensor
    • Film Tranport with individual drives
    • Upto 200 product codes available
    • GIC counter balanced system

Applications

The GIC8100 can package a wide variety of products including fresh produce, snacks, confectionery, pet food, powders, pulses, pasta, liquids and non-foods.

Pack Styles

• • Pillow
  • Gusset
  • Block Bottom
  • Doy
  • Quad
  • Euroslot

Technical Specification

• • Weight: 1100kg
  • Maximum Pack Sizes: 400mm Wide x 500mm Long
  • Maximum Speed: 160 packs per min
  • Power Supply: 415V 3-phase 3kW (4kW for servo option)
  • Compressed Air: Free air – 0.06 cubic mtrs/min dependent on speed and application.
  • Finish: Stainless steel and anodised aluminium
  • Packaging Materials: All suitable heat sealable materials including laminates and polyethylenes (optional impulse sealing).
  • Reel Outer Diameter: 480mm (max reel weight 90kg)
  • Reel Core Diameter: 76mm
