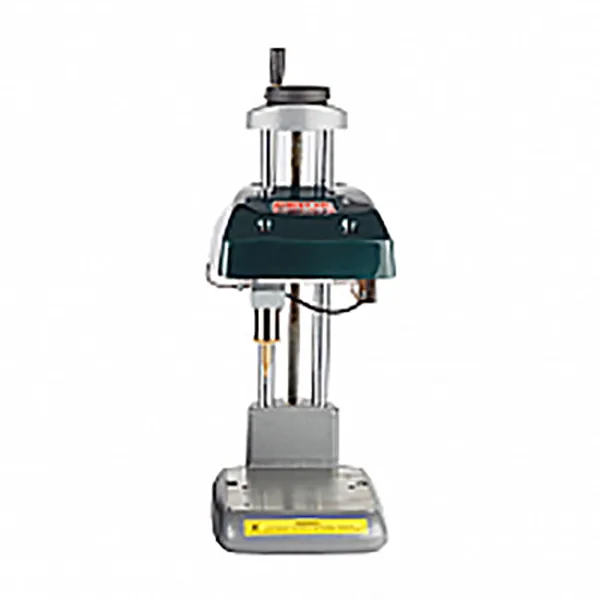

MarkMate - Dot Peen Marking Machine
MarkMate - Dot Peen Marking Machine
The MarkMate is a benchtop dot peen marking machine for engraving small to medium sized components with unique alphanumeric identification, manufacturer information, logos and 2D Barcodes.
Programmed using the Pryor Series 4000 Embedded Controller or Pryor's PC based Traceability Software suite
- Programmable direct part marking
- Serial and batch numbering
- Logo and decorative marking
- Security, inspection and certification marking
- Label and tag marking
- Component identification and traceability
Overview
Versatile, Easy to Operate Benchtop Dot Peen Marking Machine
The Pryor MarkMate dot peen marking machine is a bench mounted unit and ideal for both commercial and industrial applications.
The MarkMate is an easy to use entry level model with the ability to meet the demanding marking and traceability needs of today's manufacturers with the use of sophisticated programming.
The dot machine is easily programmed for marking and traceability purposes using the Pryor Series 4000 Embedded Controller or Pryor's PC based Traceability Software.
Dot marking is widely recognised for applying the lowest stress levels, and the MarkMate greatly enhances this advantage through it’s variable force control. It is also driven by a lead screw marking head for unmatched precision.
The excellent flexibility and control over the output has resulted in this technology becoming well established across the aerospace industry where precision and low stress are key factors when identifying critical components.
MarkMate Dot Peen Machine Features
The system provides many different fonts and character sizes, along with arc marking and variable force control providing optimum depth of engraving on various materials.
The MarkMate boasts a multilingual user interface, including English, French, German, Spanish, Swedish, Finnish, Italian, Cyrillic and Czech, allowing ease and flexibility of use across any workforce.
The dot marker is often used to create Data Matrix codes (up to 15 characters), but can also be used to create serial numbers, logo and decorative marking, certification marking and many more design outputs. The designs are extremely flexible and the range of shapes and dimensions of components that can be marked is extremely broad, too.
The machine comes with numerous fixturing options for different shaped surfaces, it has an easily adjustable height position, and the 100mm x 75mm marking area allows for multi-component marking, increasing the speed of operations. The Markmate can be run to medium output or non-stop production outputs.
The design layouts are easily programmable and the MarkMate has an extremely large storage capacity, whether you choose the standalone configuration with Series 4000 Controller or the networked USB version.
The electrics are separate to the machine in both versions as Pryor provides only uncompromising build quality, suitable for the toughest workshop conditions. Keeping the electrics separate ensures their integrity and a long-life span, which would be compromised if they were mounted on a machine that exerts enough force to create a mark.
The MarkMate does not require air supply as it is powered by electromagnetic stylus technology. However, Pryor also offers a Pneumatic High Amplitude version and a Pneumatic High Frequency version of the product. The High Amplitude version is ideal if you are marking uneven surfaces up to 12mm or if you are seeking a deeper marking depth. The High Frequency version offers the fastest marking speed in the range and it’s high dot density option allows marks of a continuous line style.
For even greater precision and aerospace part marking, see the BenchDot dot peen marking machine
MarkMate Machine Parts and Accessories
Attaching Fixtures: The option to fit a T-slotted base for attaching fixtures to the base. Manufactured in extruded aluminium with 45mm pitch
- Product option code: ACCMM1075TB
Label Marking: Single label fixture for right angled labels or parts 35-100mm x 20-75mm x 0.5-2.0mm
- Product option code: ACCBDFX
Flat Part Engraving: Magnetic clamp for flat parts with a marking area measuring 184mm x 100mm and a holding force of 80N/cm2
- Product option code: ACCBDMC
Cylindrical Part Marking: Magnetic V shaped clamp allows users to dot peen engrave cylindrical parts with a diameter between 5mm and 70mm and includes machine base adaptor.
- Product option code: ACCBDMV
Marking Around a Circumference: This circumferential axis enables dot peen marking round a circumference with a part diameter up to 76mm, with a homing sensor
- Product option code: ACCBDCA01
High Speed Label Marking: Optional electric label feed for flat, burr free labels measuring 25-110mm x 25-75mm x 0.8-3.0mm thick
- Product option code: ACCBDELF
Barcode Reader: RS232 barcode scanner can be used to select a programme or input marking data
- Product option code: VISBR001
