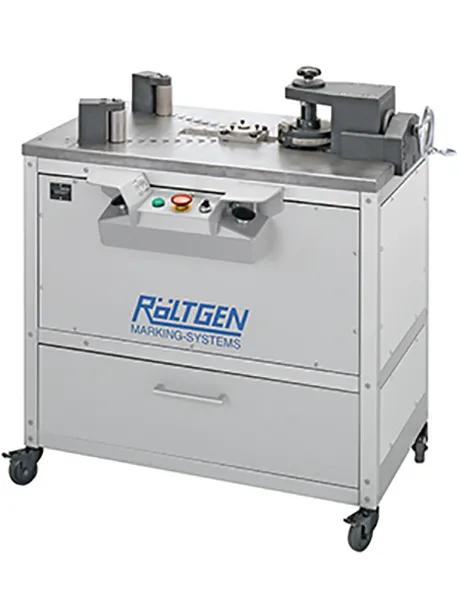

Table roll-off embossing machine PR 1126

Roll-off embossing machine in robust design, for round parts with an outer diameter of 18 to 400 mm. Straight parts can also be embossed with this machine. Pressure adjustment and pressure compensation during the embossing process. With height adjustment and piece counter. The roll-off type holder can be used in a single or multi-line version. The type holder is equipped with segment steel types as individual or block types, so that you can put together any text yourself. The font height is based on customer requirements and is a maximum of 10 mm.

Functional sequence:

The roll-off type holder is equipped with types in a range of 180 °. The flattened part of the unwinding head opposite the inserted workpiece is always in the start position. The workpiece is inserted between the positioned counter-pressure rollers and the type carrier. Use the hand crank on the right of the embossing head to set the embossing depth. The height distance is set using the rotary knob above the type holder (optional standard height adjustment with tool). After triggering the two-hand operation, the type holder begins to rotate 360 ​​° and rolls the inserted text into the workpiece. After the embossing process, the rotation stops automatically and the workpiece can be removed without any problems.

Technical specifications:

• Embossing area. 18 - 400 mm
• Height adjustment of the roller type head: 0 - 75 mm
• Typeface length: up to 500 mm
• Character heights: max. 10 mm
• Theoretical number of pieces: approx. 700 pieces / hour
• Connection voltage: 380 V, 50 Hz
• Machine dimensions: 1100 x 750 x 1100 mm (W x D x H)
• Weight: approx. 250 kg
• Possible uses: flanges, fittings, discs, shafts, fittings, sleeves, pipe sections, sockets, turned parts, socket wrench inserts, etc.

Optional accessories:

• Roll-off type holder, 156 mm diameter
• Height adjustment by turning knob
• Under table made of aluminium profiles
• Fixed roll-off stamp
