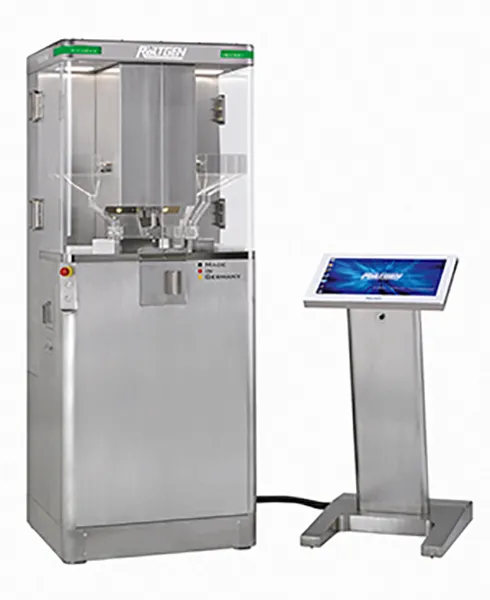

Flexi Tab XL

Flexi Tab XL

Flexi Tab XL

Freely controllable single-stroke tablet press for galenics and researchThe FlexiTabXL® single-stroke tablet press is characterized by its great flexibility compared to rotary and eccentric presses. The ideal area of ​​application is galenic development and small series production.

All common tablet shapes can be produced with the FlexiTab® without any problems, both single-layer, double-layer and even three-layer tablets with different layer thicknesses. The FlexiTab® with its various options, such as: Due to a pressure cylinder, the FlexiTab® software and the PLC control, the press is not tied to any fixed production cycles and presses primarily on force.

The FlexiTabXL® thus compensates for the greatest disadvantages of an eccentric press. You have the option of changing the process speeds through various setting parameters. This enables z. B. a slow venting of the granules or a rapid releasing of the finished tablet. Special processes in the press cycle can therefore also be developed at the customer's request. If you want to save time and money in research and development, then benefit now from the patented FlexiTab® tablet press. We would be happy to give you our references or we can demonstrate the FlexiTab® to you in our house by arrangement.

Advantages of the FlexiTabXL:

  • quick and easy adjustment of the pressing force, amount and layer thickness
  • quick and easy format change without dismantling the hopper and filling shoe
  • easy cleaning of the parts in contact with the product
  • Parts in contact with the product are made of stainless steel
  • different modes of operation
  • Pressing on force or optionally on path
  • Pressing small quantities by "manual filling"
  • very easily accessible press room

Optionally available:

  • One, two or three shifts
  • Adapter for Euro-B, Euro-D, TSM-B, TSM-D, EK0 or EK2 tools
  • Bale chamber coating
  • Sheath-core table
  • Press force, ejection force and length measurement in real time
  • Measurement data acquisition software DAQ4
  • Validation documents
