Cousins Packaging

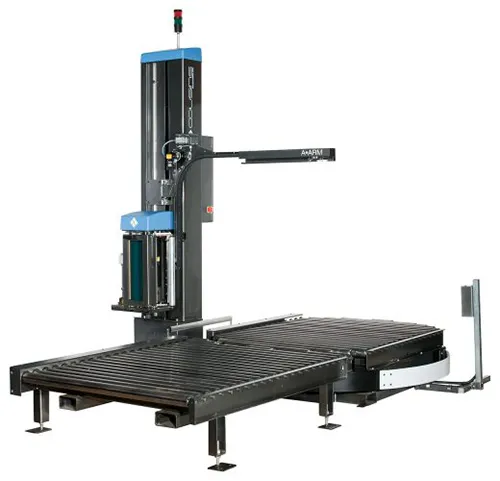

3300-A Conveyorized A-Arm Automatic

Specification

Production Speed

• 1-35 loads per hour

• NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time

Load Capacity

• Maximum load weight: 4,000 lbs dynamic – 12,000 lbs static

• Maximum load size: 48″ W x 48″ L (68″ max. load diagonal) x 70″ H (plus up to 2″ top overlap)

Turntable

• 72″ diameter 3/8″ thick laser-cut steel plate with 5″ skirt

• Front and side cut-outs with UHMW flexible contouring for fork truck access

• 6-point heavy duty ball bearing caster support system

• ANSI # 60 direct chain drive c/w chain tensioner

• 3-16 RPM rotational speed c/w soft start acceleration

• 3/4 HP AC variable speed motor c/w turntable holding brake

• Final revolution deceleration and positive stop alignment

Film Carriage Elevator

• 1/2 HP AC variable speed motor

• ANSI #40 direct chain drive c/w shock dampener & Anti-Fall Safety Device

• Maintenance free carriage guidance system
