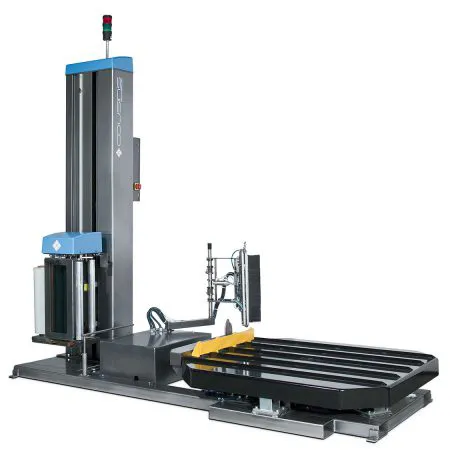

HP 3200 Platform Automatic (High Profile)

Specification

Production Speed

• 1-40 loads per hour

NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time

Load Capacity

• Maximum load weight: 4,500 lbs dynamic – 10,000 lbs static

• Maximum load size: 50″ W x 50″ L (71″ max. load diagonal) x 80″ H (plus up to 4″ top overlap)

• Minimum load size: 30″ W x 30″ L x 24″ H

Turntable

• 52″ octagonal 5/16″ thick formed steel plate turntable

• 4 point caster support system

• Turntable height less than 12″ from floor

• ANSI #50 direct chain drive c/w chain tensioner

• 3-12 RPM rotational speed c/w soft start acceleration

• 1/2 HP AC variable speed motor

• Final revolution deceleration and positive stop alignment

• Front & back forklift ports for easy movement

Film Carriage Elevator

• 1/2 HP AC variable speed motor

• ANSI #40 direct chain drive c/w shock dampener & Anti-Fall Safety Device

• Maintenance free carriage guidance system
