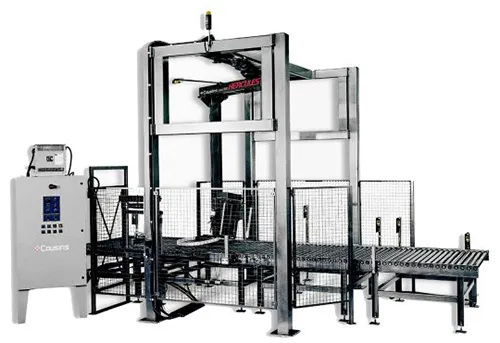

7100-65-OHA Hercules Conveyorized Automatic

Specification

Production Speed

• 1-65 loads per hour

• NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time

Load Capacity

• Maximum load weight: 4,000 lbs dynamic – 12,000 lbs static

• Maximum load size: 50″ W x 60″ L (79″ max. load diagonal) x 80″ H (plus up to 4″ top overlap)

• Minimum load size: 30″ W x 30″ L x 24″ H

Rotary Arm

• 20″ diameter ring bearing support system

• ANSI # 60 direct chain drive c/w chain tensioner

• 1-22 RPM rotational speed c/w soft start acceleration

• Final revolution deceleration and positive stop alignment

• 1 HP DC variable speed motor

Film Carriage Elevator

• 3/4 HP DC variable speed motor

• ANSI # 50 direct chain drive c/w shock dampeners

• Maintenance free 12 point carriage guidance system
