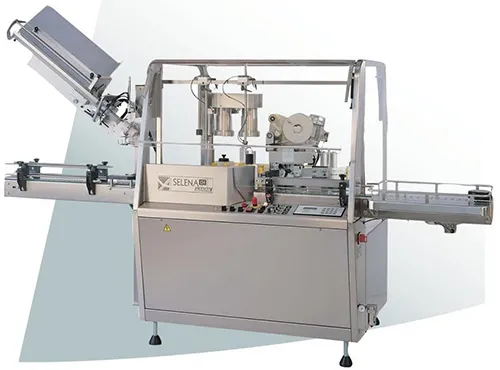

Champagne / Dual Labelling-machine with digital control

Description

• Label attachment on all types of cylindrical bottles (Ø 55 to 115 mm)

• Sparkling wine caps setting with electronic height adjustment.

• Possibility of adaptation with three supplementary label stations.

• Attachment heads on electronically controlled height adjustable stand.

• Labelling stop with fibre optics and automatic locking at label’s exit.

• Automatic labelling stop at the end of label rolls.

• Bottle guiding and blocking in 8 point star during the whole work cycle.

• Bottle blocking during labelling through door mounted on pneumatic jack.

• Adjustment of label synchronization by control with digital display permitting memorization of adjustments relating to each bottle and label type (up to 100 programmes).

• Automatic bottle counter – reverse counter. Electronic speed variator.

• Attachment precision controlled by optic coder.

• Machine to install in packaging lines, mounted on 4 feet, integral stainless steel construction, in accordance with CRAM safety protection standards .

• Maximum label height up to 170 mm (220 mm on demand).

• Modular conception permitting addition of equipment & complementary options at any moment.
