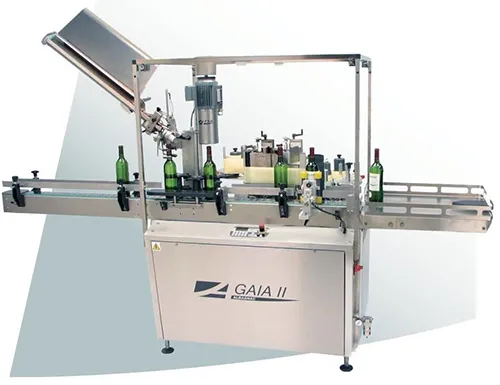

Gaia II Self-adhesive labeller with digital control

Gaia II Self-adhesive labeller with digital control


  • Permits attachment of front labels on cylindrical or conical bottles ( 0.55 up to 115 mm )

  • Possibility of adaptation of 2 or 3 supplementary label stations

  • Asymmetrical capping movement with centralized adjustment of capping heights and cap distri-bution

  • Bottle-centring by star and back-star

  • Independent attachment head with height and mechanical inclining adjustment

  • Label stoppage using fibre optics with automatic locking of label dispense

  • Automatic labelling stoppage at end of label reel

  • Bottle blockage by pneumatic rotating system during labelling

  • Operational adjustment in labelling phase by digital display control permitting control storage related to each type of bottle and label

  • Automatic bottle-counter down-counter

  • Machine mounted on 4 feet, integral construction in stainless steel, with safety protection conforming to standards.

  • Modular conception. The machine can be fitted with any optional equipment during construction or at any moment on the customer’s demand.
