ALBAGNAC S.A.S.

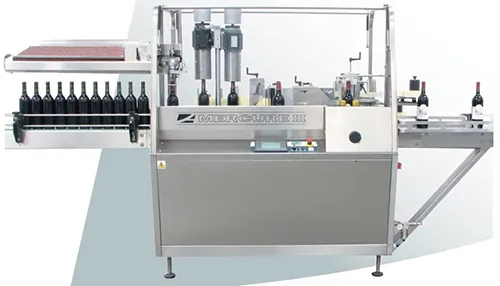

Labelling-machine with tactile screen-Mercure III

TECHNICAL DESCRIPTION

• Flatbed for capping and adhesive label application on all types of cylindrical bottles ( 55 to 115 mm )

• Bottle feeder with Archimedes’ screw

• 2 headed rotary capping device fitted with TS8 heads with electronic height adjustment Possibility of adaptation of 3 supplementary label applicators

• Application heads on a height-adjustable support with electric control via a touch screen

• Label stoppage using fibre optics with automatic locking of label dispenser

• Automatic labelling stoppage at end of label-reels

• Bottle blockage and rotating system with pneumatic jack during labelling process

• Adjustment of the positioning of the labels on the touch screen enabling the settings for each type of bottle and label to be memorised

• Automatic bottle counter-decounter

• Electronic speed variation

• Precision of label application controlled by optical signal

• Maximum front label height 170mm (220mm on demand)

• Flatbed for installation, mounted on 4 feet, construction in 100% stainless steel, with safety protection conforming to EC standards

• Modular conception . The machine can be fitted with any optional equipment during construction or at any moment on customer’s demand
