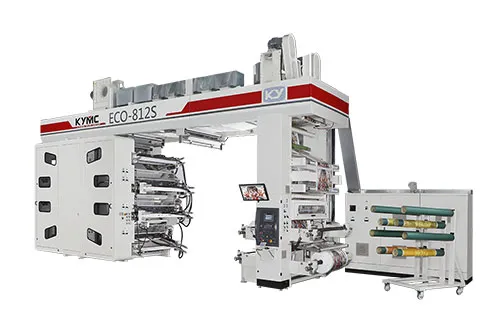

ECO Central Impression Printing Press
The ECO central impression printing press is the ideal printing press for those printers and converters new to flexo printing or looking for a low-cost ECO central impression press and a quick return on investment. You can own the industrial standard at much lower capital investment. If you are looking for an introductory CI solution, this is the central impression flexo press for you to customize.
Standard Specification
- Double stand unwind and rewind
- Print cylinder and anilox roller
Highlight
The ECO central impression printing press is the ideal CI press for those printers and converters new to flexo printing or looking for a low cost central impression printing press and a quick return on investment. At a lower cost, the ECO central impression printing press precision and workmanship is at high standard, with excellent production capacity. You can own the industrial standard at much lower capital investment. The Eco central impression printing press is designed for…
Operation Comfort
- User friendly layout screen control
Print Quality
Quick job Change
- Anilox and plate sleeve design (optional)
- Nonstop turret type unwind and rewind (optional)
Safety
- Compliant with Conformité Européene or Australian Standard
- Certification service available with CSA, NEC and IEC
Application
Paper
Food packaging, Medical packaging, Pre-print for paper box, Bags, Paper cup, Liquid & beverage, Household cleaning, Cosmetics, Gift wraps, Wallpaper
Film
Food packaging, Medical packaging, Industrial packaging, Sanitary Packaging, Bags, Liquid & beverage, Household cleaning, Cosmetics, Confectionary wrappers
Aluminum
Food packaging, Medical packaging, Industrial packaging
Specification Details
Specifications
|
|
ECO
|
Number of Colors
|
|
4 / 6 / 8
|
Max Machine Speed
|
m/min
ft/min
|
300
984
|
Material Width
|
mm
inch
|
600 / 800 / 1000 / 1200 / 1500
23.6 / 31.5 / 39.4 / 47.2 / 59.1
|
Printing Sleeve Width
|
mm
inch
|
570 / 770 / 970 /1170 / 1470
22.4 / 30.3 / 38.2 / 46.1 / 57.9
|
Roll Diameter
|
mm
inch
|
600 / 800, 1000, 1200 (Option)
23.6 / 31.5, 39.3, 47.2
|
Repeat Length
|
mm
inch
|
360-800 / 1000 (Option)
14.2-31.5 / 39.4
|
