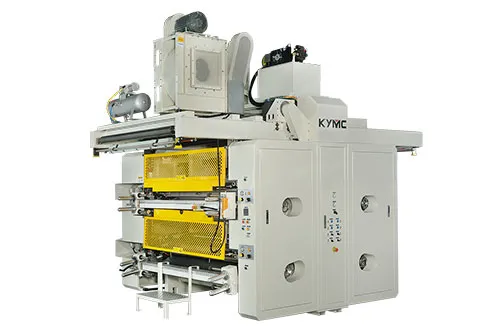

Inline Flexographic Printing Press Inflex
The Inline Flexographic Printing Press Inflex machine can be placed in-line with any kind of converting equipment such as extruder, bag making, sheeter, die cutting…etc. If you are looking to add to your existing production line, this is the ideal Inline Flexographic Printing Press Inflex for you to customize.
Standard Specification
- Drying tunnel between color and final color drying module
- Fountain roller type or chamber doctor blade type
- Print cylinder and anilox roller (available for upgrade to sleeve)
- Special taper lock design for print cylinder
Highlight
The Inline Flexographic Printing Press Inflex machine can be placed in-line with any kind of converting equipment such as extruder, bag making machine, sheeter, die cutting…etc. The electric line shaft (ELS) linkage press has its own Dancer Roller Assembly with Position Detection for automatic speed synchronization. The machine is driven by an AC Vector Motor with Vector Drive capability. All printing decks are all available to be equipped with differential gear for rapid 360 degree register adjustment without stopping the main production line. Auto ink circulation system on the press saves operators the trouble from constant ink checks. The Inline Flexographic Printing Press Inflex machine is designed for...
Operation Comfort
- Air shaft mandrel (for sleeve type)
- Quiet and precise timing belt drive
Print Quality
- Vibration free cast iron machine frame design
- Fine micro impression control via 360 degree gearbox
Quick job Change
- Anilox and plate sleeve design(optional)
- Fast changeover for surface & reverse print
Safety
- Compliant with Conformité Européene or Australian Standard
- Certification service available with CSA, NEC and IEC
Application
Paper
Food packaging, Medical packaging, Pre-print for paper box, Bags, Paper cup, Liquid & beverage, Household cleaning, Cosmetics, Gift wraps, Wallpaper
Film
Food packaging, Medical packaging, Industrial packaging, Sanitary Packaging, Bags, Liquid & beverage, Household cleaning, Cosmetics, Confectionary wrappers
Specification Details
Specifications
|
|
INFLEX SERIES
|
Number of Colors
|
|
1 / 2 / 4 / 6
|
Max Machine Speed
|
m/min
ft/min
|
300
984
|
Material Width
|
mm
inch
|
600 / 800 / 1000 / 1200 / 1500
23.6 / 31.5/ 39.3 / 47.2 / 59.1
|
Repeat Length
|
mm
inch
|
300 - 800 (option 1000)
11.8 - 31.5 (option 39.4)
|
