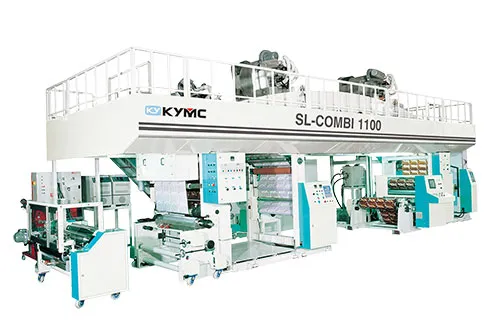

Multi Purpose Coating & Lamination Machine SL-Combi
The Multi Purpose Coating & Lamination Machine SL-Combi is a versatile machine, combining a series of different coating and lamination techniques. Available for duplex or triplex lamination and up to multi-layer lamination in line with different coating or printing process. The lamination coating machine could work with solvent, solventless and water based compounds. If you are looking for Purpose Coating & Lamination Machine SL-Combi solution, this is the best laminator press for you to customize.
Standard Specification
- Shaftless chucking on unwind and rewind (unwinder, rewinding number depends on the number of layers in laminating)
- Sleeve system for application and coating roller
- Metering Roller contains oil heating device with automatic temperature control included
- Automatic line speed and tension control
- Electric line shaft with AC vector drives
- Automatic edge guiding system
Highlight
The Multi Purpose Coating & Lamination Machine SL-Combi is a versatile machine, combining a series of different coating and lamination techniques. Available for duplex or triplex lamination and up to muti-layer lamination in line with different coating or printing process. The machine could work with solvent, solventless and water based chemicals. The coating method available includes:
- Direct Gravure or Reverse Gravure Coating
- Flexo or Semi-flexo Coating
- Four Roller Coating and much more
The Multi Purpose Coating & Lamination Machine SL-COMBI machine is designed for…
Operation Comfort
- User friendly layout screen control
Quick job Change
- Sleeve system for coating roller
- Job memory for repeat tasks
- Shaftless chucking on unwind rewind
Remote Service Assistance
- 24/7 machine online diagnostic system
- Exclusive PLC Network Connection Technology to achieve deep online diagnose and prompt remote-maintenance.
Industrial I.40
- OPC UA Data Exchange Protocol for communication between devices, machines and enterprise systems (ERP, SCADA, CRM…etc)
- Remote HMI monitoring via mobile devices
Safety
- Compliant with Conformité Européene or Australian Standard
- Certification service available with CSA, NEC and IEC
Application
Solvent base lamination, Solventless lamination, Water base lamination, PVDC coating, Hot melt coating, Rotogravure printing, Flexo printing, Varnishing in register, Cold seal coating in register
Specification Details
Specifications
|
|
SL-COMBI SERIES
|
Max Machine Speed
|
m/min
ft/min
|
350
1148
|
Material Width
|
mm
inch
|
1100 / 1300 / 1500
43.3 / 51.2 / 59.1
|
Max Roll Diameter
|
mm
inch
|
600 / 800 / 1000 / 1200 / 1500
23.6 / 31.5 / 39.4 / 47.2 / 59.1
|
