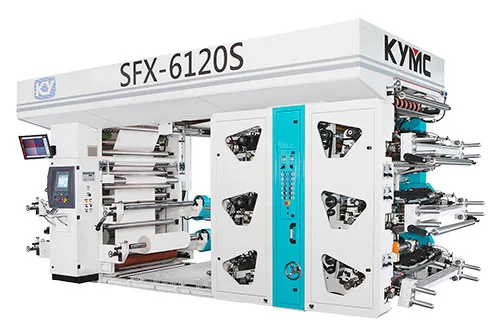

Stack Flexo Printing Press
The stack flexo printing press is an environmental friendly stack press that could run on water based inks. With SFX, you could obtain the closest print quality to a central impression press. If you are looking for a room saving option with decent print quality this is the press for you to customize.
Standard Specification
- Double stand unwind rewind
- Print cylinder and anilox roller
Highlight
With stack flexo printing press, you could obtain the closest print quality to a central impression press. The stack press is equipped with the sleeve system for quick change over on the press. The change over time required for front and reverse print, anilox roll, doctor blade and print cylinder as well as materials rolls is reduced to a minimum, which makes this machine your first choice when it comes to short-run operation. The stack flexo printing press is designed for...
Operation Comfort
- Air mandrel for sleeve (optional)
- Quiet and precise timing belt drive
Print Quality
- Heavy duty cast iron machine frame design
- Fine micro impression control via precision gear box
Quick job Change
- Anilox and plate sleeve design (Optional)
- Fast changeover for surface & reverse print
Safety
- Compliant with Conformité Européene or Australian Standard
- Certification service available with CSA, NEC and IEC
Application
Paper
Food packaging, Medical packaging, Pre-print for paper box, Bags, Paper cup, Liquid & beverage, Household cleaning, Cosmetics, Gift wraps, Wallpaper
Film
Food packaging, Medical packaging, Industrial packaging, Sanitary Packaging, Bags, Liquid & beverage, Household cleaning, Cosmetics, Confectionary wrappers
Aluminum
Food packaging, Medical packaging, Industrial packaging
Woven bag
Specification Details
Specifications
|
|
SFX SERIES
|
Number of Colors
|
|
2 / 4 / 6 / 8
|
Max Machine Speed
|
m/min
ft/min
|
250
820
|
Material Width
|
mm
inch
|
600 / 800 / 1000 / 1200 /1300 / 1500
23.6 / 31.5 / 39.4 / 47.2 / 51.2 / 59
|
Printing Repeat
|
mm
inch
|
300 ~ 800 ( 1000 / 1200 )
11.8 ~ 31.5 ( 39.4 / 47.2 )
|
Gear Pitch
|
mm
inch
|
5 / 10
10 DP / 1/4"CP
|
