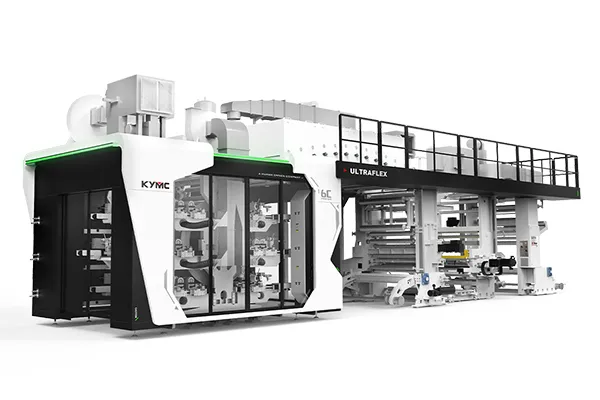

Ultraflex—CI UV-LED Hybrid

Ultraflex—CI UV-LED Hybrid

The Ultraflex press is a UV-LED central impression press to provide high quality print with high opacity. At the same time Ultraflex press is an ecofriendly solution as UV-LED application does not emit VOCs. The Ultraflex-H is a hybrid press that integrates 3 technologies, the UV-LED ink application, solvent/water-based ink application and the central impression (CI). The Ultraflex-H enables you to take advantage of the UV-LED application but at the same time draw back to the solvent based or water-based print stations when needed If you are looking for a flexible, cost effective and production efficient press, the Ultraflex superprint plus series is the press for you to customize.

Specification Details



Ultraflex / Ultraflex-H (Full UV-LED / Hybrid)

Number of Colors


6 / 8

Max Machine Speed



Material Width


870 / 1370
34.3 / 53.9

Printing Sleeve Width


800 / 1300
31.5 / 51.2

Roll Diameter


800 / 1000 (Option)
31.5 / 39.4 (Option)

Repeat Length




Standard Specification

  • UV-LED press inking and curing system
  • (Solvent/water-based) inking and drying system (Ultraflex-H only)
  • Interchangeable drying / curing units (Ultraflex-H only)
  • Non-stop turret type unwind and rewind
  • Print and anilox sleeve
  • Auto registration system
  • Infeed web guide


The Ultraflex / Ultraflex-H is a UV-LED central impression press. The Ultraflex press is a full UV-LED press. This press is for printers looking for a full ultraflex UV-LED application with high print quality and low waste. The Ultraflex-H press is a hybrid for printers looking for maximum flexibility. Through Ultrafex-H printers can take on the widest range of product line while not sacrificing the benefit of print quality and eco friendliness. The Ultraflex series is designed for…

Operation Comfort

  • Touch screen interface
  • User friendly layout screen control
  • Fully digitalized controls for precise print settings
  • Easy access to printing stations

Print Quality

  • Heavy duty designed machine frames
  • Servo motor control guarantee excellent print registration holding
  • Web viewing system
  • Automated registration control
  • Micrometric kiss impression control to one micron

Quick job Change

  • Anilox and plate sleeve design
  • Auto pre-register control
  • Auto quick wash features for inking system
  • Job memory for repeat tasks

Remote Service Assistance

  • 24/7 machine online diagnostic system
  • Exclusive PLC Network Connection Technology to achieve deep online diagnose and prompt remote-maintenance.

Industrial I4.0

  • OPC UA Data Exchange Protocol for communication between devices, machines and enterprise systems (ERP, SCADA, CRM…etc)
  • Remote HMI monitoring via mobile devices


  • Compliant with Conformité Européene or Australian Standard
  • Certification service available with CSA, NEC and IEC


Food packaging, Medical packaging, Industrial packaging
