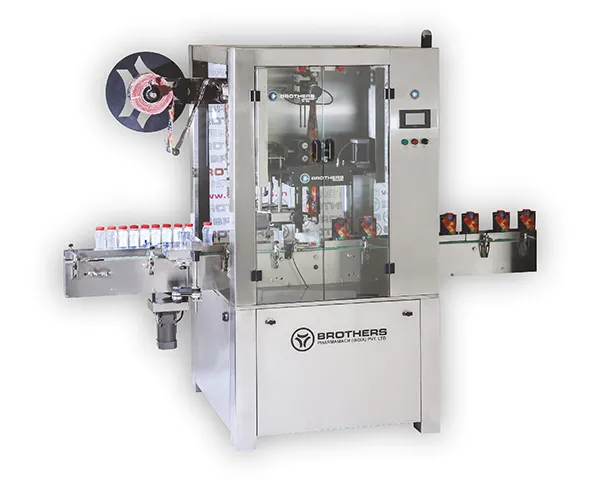

Automatic Shrink Label Inserting With Shrink Tunnel SleevPACK-150

The Automatic Shrink Label Inserting Machine Model SleevPACK-150 with Option of Shrink Tunnel is suitable to Cut and Insert Shrink Label from Roll Form on Glass, Plastic, PET, Aluminium Bottles and Containers in FOOD, FMCG, Pesticides, Cosmetics and Pharmaceutical Industries. The shrink label machine incorporates latest sophisticated SERVO Control Sleeve Applicator. The Machine Construction in Heavy Duty S.S.304 Material but with Compact design.

This Flexible sleeve labeling machine is suitable for decoration of wide range of Bottles and Containers. Special machine also available for special shape containers. Machine can give speed upto 150 Bottles per minute depending on Sleeve Cut Length, Shape of Bottle and Shrink percentage of Sleeve. The automatic shrink sleeve applicator machine with Optional Pre-Fixing Hot Air Nozzle for Setting Sleeve Position at Top or Bottom of Bottles before entering into Shrink Tunnel.

The shrink sleeve machine has Time Tested Rotating type SERVO Controlled Sleeve Cutting System for high Speed and accurate sleeve cutting. Machine is ideal to use on Round and other curve shape Bottle or Containers where Sticker Labelling is not possible to use. The shrink sleeve label machine is available with Electrically Heated Hot Air Tunnel or Steam Tunnel depending on product and customer requirement.

BUILT IN FEATURES of shrink label printing machine:

- Colour Touch Screen Operation Panel with PLC Control

- Virtually Maintenance Free Machine

- Synchronized speed of Sleeve Dispensing, Conveyor and Sleeve

Positioning Device.

- Easy to change Sleeve application height

- Heavy Duty S.S. 304 Material Machine Frame Structure

- S.S.304 Material heavy duty Safety Cabinet with Toughened Glass

- Built In A.C. Variable Frequency Drive System.

TECHNICAL SPECIFICATIONS :

Sleeve Height : 50 mm to 150 mm Standard*

Bottle Height : up to 225 mm

Sleeve Roll Dia. : 400 mm

Core Dia. : 75/76 mm

Sleeve Thickness : 0.045mm to 0.08mm

Product Diameter : User can choose any one option

25 to 50mm / 45 to 90mm or 90 to 125mm*

Electrical : 415 VAC 3 Phase Power Supply (50/60 Hz)

Power : 2.5 Kw for Machine and 15 Kw for Shrink Tunnel

Speed : Up to 150 Products per minute depending on Product Diameter, Product Height and Sleeve Cutting Length.

Conveyor height : 900 to 950 mm*

Overall dimension : 2440 mm(L) X 1000 mm(W) X 1900 mm (H)

Machine with Shrink Tunnel : 4880 mm(L) X 1000 mm(W) X 1900 mm (H)

Machine Direction of Movement : Left to Right from operator side

UTILITY REQUIREMENT :

Filtered Compressed Air : 5 to 7 Bar Air Pressure Required in case of online Pneumatically operated Bottle Ejection System

Electrical : 440VAC 3 Phase / 220 VAC Single Phase Power Supply (50 Hz) for Machine and Electrically Heated Tunnel and Steam supply in case of Steam Tunnel.

* Specification can be changed as per customers requirements

OPTIONAL FEATURES :

- Tower Light showing the machine status / operation

- Vision System for checking Presence / Absence of Sleeve on Bottle

- Online Bottle Ejection System

- Infeed Jam detection system

- Outfeed Jam detection system

- 21CFR Part 11 Compliance
