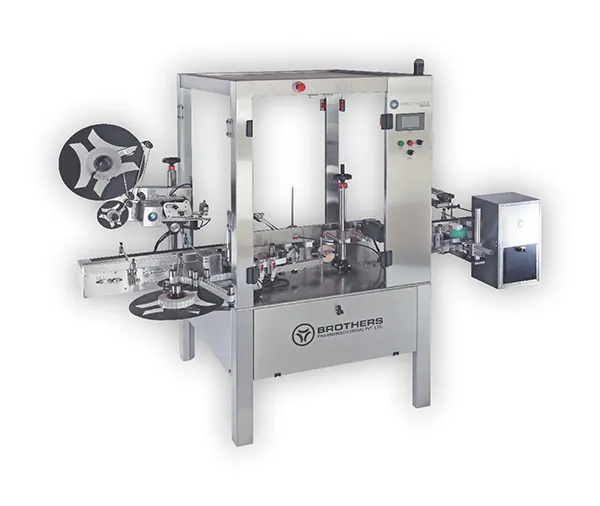

Automatic Twin Head Carton Security Label Sticker Labelling Machine

Automatic Twin Head Carton Security Label Sticker Labelling Machine

The Automatic Sticker Labelling Machine Model LABELSTIK-250C-Twin, is one of the most user friendly. The security label sticker machine incorporates latest sophisticated PLC Controlled Label Dispensing system with user friendly Sensing system for Label and Product. The label printing machine for security label is suitable for applying Two Side Security Labels in “L” Shape on Two side of Cartons with speed upto 250 Products per minute depending on cartons and label size. Machine can be used for Self Adhesive Paper Labels, Film Labels or Hologram. It is capable of Labelling up to 250 units per minute depending on Product Size, Shape, Product movement direction and Label size.



The carton sticker labelling machine can be used for Offline or Online application, however customer require to send us sample of cartons and also detail of carton position while movement as the position of carton is important and required to feed and desired position for two side label application. LABELSTIK-250C.Twin Machine having required all basic features as a standard fitment to match the current market needs and also saves cost and time.



The double side sticker labeling machine can be used for applying Two Side “L” Shape Security Label or Top Side Single Label on Carton / Shox Box.



TECHNICAL SPECIFICATIONS



Label Height : 8 mm to 70 mm Standard*

Label Length : 12 mm Minimum

Label Roll Dia. : 400 mm

Core Dia. : 75/76 mm

Gap Between two Labels : appx. 3 mm

Product Feeding : Cartons required to feed on machine with regular

interval/gap between cartons in required position by customer

Electrical : 220 VAC Single Phase Power Supply (50/60 Hz)

Power : 1.0 Hp, 1.5 Amp.

Capacity : 0.75 Kw

Speed : Up to 240 Labels per minute.

Speed of Machine depending on Label Size and Carton Size.

Conveyor height : 830-875 mm*

Overall dimension : 2440 mm(L) X 1300 mm(W) X 1600 mm (H)

with T.G. Cabinet 2440 mm(L) X 1300 mm(W) X 1600 mm (H)

Machine Direction of Movement : Left to Right from operator side



* Specification can be changed as per customers requirements





* For Built-in / Optional* Items Click Below Link
