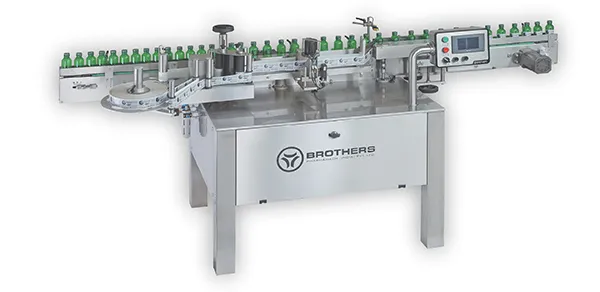

Automatic Sticker Labelling Machine Labelstik-150B

Automatic Sticker Labelling Machine Labelstik-150B

The Automatic Vertical Sticker Labelling Machine Model LABELSTIK-150B, is one of the most user friendly. The Machine incorporates latest sophisticated PLC Controlled Label Dispensing system with user friendly Sensing system for Label and Product. The vial labelling machine is suitable for Labelling on Round Bottle, Jars and other round objects. It is capable of Labelling up to 150 Products per minute depending on products diameter and label size.



The bottle sticker labelling machine is suited for Glass, Plastic Aluminium, PET bottles of Pharmaceuticals, Mineral Water, Food Products and Pesticides having bigger Label Height and Length.



The Machine’s Positive Drive Spacing Belt / Roller eliminates the need of Feed Worm or Star Wheel for uniform product separation, for regular shaped containers. Smart Vertically / Horizontally Adjustable Pressing Device of the machine makes the alignments for the Height and Diameter of Containers easy and convenient.



The automatic sticker labeling machine LABELSTIK-150B has its own unique single point synchronised speed control system. The Inbuilt Automated Label Length detection systems eliminates any need for manually feeding and storing of Label Length data in memory and retrieving the same every time for change of Label Size & re-starting the machine. The System thus saves valuable time, avoiding machine-down time, and helps achieve higher production.



Machine also available with optional online Track and Trace solution having our specially developed LABEL MASTER Software which is suitable to use machine for Static as well as variable (RSN) code printing and verification system with the help of other required items such as Coding System, Camera System etc.

TECHNICAL SPECIFICATIONS :



Label Height : 8 mm to 90/120/150 mm Standard*

Label Length : 12 mm Minimum

Label Roll Dia. : 400 mm

Core Dia. : 75/76 mm

Gap Between two Labels : appx. 3 mm

Product Diameter : 15 mm to 90 mm*

Electrical : 220 VAC Single Phase Power Supply (50/60 Hz)

Power : 1.5 Amp.

Capacity : 0.75 Kw

Speed : Up to 150 Labels per minute depending on Product and Label Size

Conveyor height : 830-875 mm*

Overall dimension : 2440 mm(L) X 940 mm(W) X 1300 mm (H)

With T.G. Cabinet : 2440 mm(L) X 940 mm(W) X 1900 mm (H)

Machine Direction of Movement : Left to Right from operator side



* Specification can be changed as per customers requirements



* For Built-in / Optional* Items Click Below Link
