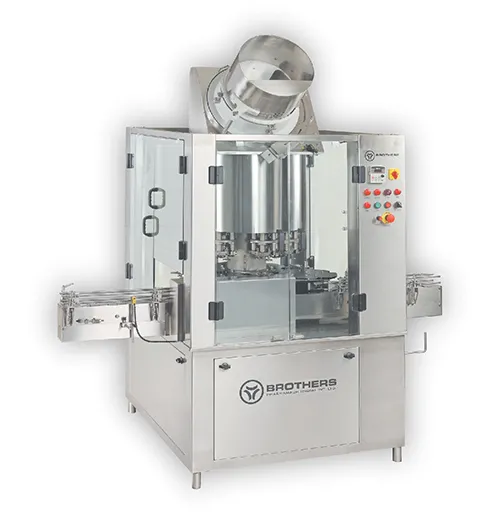

Automatic Eight Head Ropp Bottle Capping Machine Capseal-160R

Automatic Eight Head Ropp Bottle Capping Machine Capseal-160R



The Automatic Eight Head Rotary Bottle ROPP Machine Model CAPSEAL-160R for ROPP Aluminum Cap. Machine is suitable for Round or other shape of Glass, Plastic, PET, LDPE, HDPE Bottles with maximum speed of 150 Bottles per minute depending on Bottle Diameter, Bottle Height, Bottle Shape and Cap Size. Specially Machine construction in Stainless Steel finish including machine frame structure with Stainless Steel Cladding/Enclosures. The automatic Capping Machine is ideal for application in Pharmaceutical, Food, Pesticides, Cosmetic & Other Industries.



The Machine is equipped with Orientation type Cap Feeder depending on cap shape and size for continues feeding of Cap for online operation on any liquid or powder filling line. Machine suitable for various sizes of Bottles and ROPP Cap with the help of change parts. The automatic bottle Capping Machine is suitable for application in Pharmaceutical and other Industries requiring higher production speed on automatic online operation. Machine also available with optional Cap Elevator for uninterrupted Cap Feeding to Capping machine hopper.

TECHNICAL SPECIFICATIONS





Bottle Size : Diameter Up to 85mm* or other Shape bottle with proper base

Bottle Height : 300mm* Maximum

Cap Size : Upto 32mm*

Electrical : 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive

Power : 2.0 Hp

Conveyor Height : 850-900 mm

Overall Dimensions : 2440 mm (L) x 1050 mm (W) x 2300 mm (H)

Speed : Max. 150 Bottles per minute depending on Bottle and Cap Size



* Specification can be changed as per customers requirements



BUILT-IN / OPTIONAL* FEATURES :



- No Bottle - No Cap System

- No Cap - Machine Stop System

- Machine construction in Stainless Steel Finish

- In-feed and Exit Star Wheel with Overload Clutch System to avoid Bottle breakage

- Single Drive Synchronizing Total Operation of Star Wheel and Turret with Star Wheel

- Cap Feeder with Variable Speed System for feeding control of caps.

- Minimum Change Over and Setting time

- Hopper can be completely dismantle for easy cleaning

- Various safety features including Clutch system to avoid Bottle Breakage

- Single Drive synchronizing operation of Conveyor and Star Wheel

- Minimum Change over time
