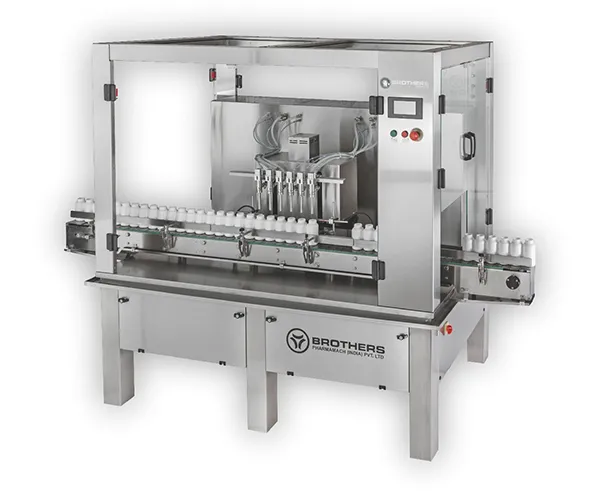

Automatic Six Head Liquid Bottle Filling Machine LIQFILL-120

The Automatic Six Head Volumetric Linear Liquid Bottle Filling Machine, Model LIQFILL-120 is suitable for Bottles with maximum speed of 120 Bottles per minute. The output of Bottle Filling Machines depending on nature of Liquids, Bottle Diameter, Bottle Height, Bottle Neck Size and Fill Volume.

The manual bottle packing machine with Linear Bottle Filling system with intermittent Linear Bottle Movement, Filling Nozzle with Stationery of Diving type System depending on Liquid. Machine with no change parts system for regular shaped, stable Bottles. Machine with pneumatically operated Bottle gating mechanism for Bottle Start – Stop Movement according to Filling Nozzle of Machine. Machine construction in fully Stainless Steel finish including machine frame structure. Machine with Specially designed Filling Nozzle for Drip Free Filling and also Syringe / Piston of machine is suitable to use for Normal as well as viscose Liquid.

Machine with Optional Turn Tables at In-feed and Out-feed with individual drives to match the speed of incoming and outgoing Bottles for smoother operation. All Stainless Steel parts coming in contact with Liquids are made from SS 316 Material.

We can also offer higher speed machine having more Syringe / Nozzle ranging from Eight Head upto 16 Head Filling. We also offer Linear Motion Filling System which offer Flexibility and Performance with simple operation having less change parts system compare to Rotary Volumetric Filling Machine. We also Offer our specially designed No Bottle – No Filling System on Linear Motion type Filling machine.

BUILT-IN / OPTIONAL FEATURES :

- Linear Filling System for Smoother and Faster Operation

- Built in PLC with Colour Touch Screen Operation.*

- No Bottle - No Fill System

- No Bottle - Machine Stop System

- Synchronize Movement of Bottle and Filling Nozzle for continuous

Operation onMotion filling only

- All Stainless Steel contact parts made of SS316 material

- Diving Nozzle System*

- Very High Fill Accuracy of +/- 1% depending on Fill Volume and Nature of Liquid

- Suitable For Syrup and Suspension having higher viscosity.

- Automatic Infeed and Exit of Bottles

- Minimum Change Over time

- Built-in A.C. Variable Freq. Drive System

- Fully Stainless Steel Finish

* All Features mentioned above may not be part of standard machine, please contact us with your requirement / product detail.

TECHNICAL SPECIFICATIONS

Bottle Diameter : Upto 90mm*

Bottle Height : 50mm to 200mm*

Fill Range : upto 1000ml* with the help of Change Parts / Syringe.

Accuracy : +/- 1 % depending on Fill Volume and Nature of Liquid

Speed : Maximum 120 Bottles per minute depending on Fill Volume, type of Liquid and Bottle Shape/Size. Other Higher Speed Model Also available with speed upto 250 Bottles per minute

Conveyor Height : 800-850 mm

Overall Dimensions : 3000 mm (L) x 800 mm (W) x 1300 mm(H)

With T.G. Cabinet : 3000 mm (L) x 800 mm (W) x 1800 mm(H)

UTILITY REQUIREMENT :

Filtered Compressed Air : 5 to 7 Bar Air Pressure Required

Suitable Capacity Buffer Tank

All Filling Tube on Machine and Piping connection upto Machine

Electrical : 220 VAC Single Phase Power Supply (50 Hz)

Power : 3.0 Hp

* Specification can be changed as per customers requirement.
