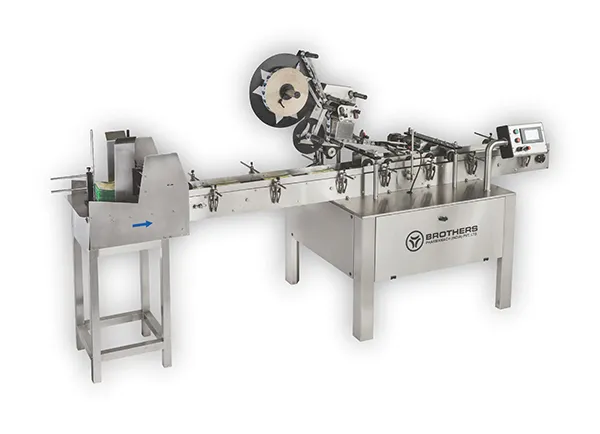

Automatic Carton Pouch Sticker Labelling Machine Labelstik-120C

Automatic Carton Pouch Sticker Labelling Machine Labelstik-120C

The Automatic Carton Sticker Labelling Machine Model LABELSTIK-120C, incorporates latest sophisticated PLC Controlled Label Dispensing system with user friendly Sensing system for Label and Product. The automatic pouch sticker labelling machine is suitable for applying Top Side Labels on flat Cartons/Pouch or applying Single side Security Label on Cartons in “L” shape. Machine also available with Side Label Application of Single Label in “L” Shape on Cartons. Machine can be used for Self Adhesive Paper Labels, Film Labels or Hologram using suitable Label Sensor available optionally. It is capable of Labelling up to 100 units per minute depending on Product Size, Shape, Product movement direction and Label size. Machine suitable for all type of Pouches and Cartons. Machine can be used for Off-Line or On Line application. The flat carton sticker labelling machine available with optional Flat Carton or Pouch Feeder at an extra cost.



Machine also available with optional special features of applying Twin Label on products from Single Label Roll or application of Label on product at regular intervals.







TECHNICAL SPECIFICATIONS



Label Height : 8 mm to 70 mm Standard*

Label Length : 12 mm Minimum

Label Roll Dia. : 400 mm

Core Dia. : 75/76 mm

Gap Between two Labels : appx. 3 mm

Product Size : Width Min. 70 to 100mm and Length 50 to 250mm

Electrical : 220 VAC Single Phase Power Supply (50/60 Hz)

Power : 1.5 Amp.

Capacity : 0.75 Kw

Speed : Up to 100 Labels per minute depending on Product and Label Size

Conveyor height : 830-875 mm*

Overall dimension : 1830 mm(L) X 650 mm(W) X 1500-1700 mm (H)

Machine Direction of Movement : Left to Right from operator side



* Specification can be changed as per customers requirements, Photographs of machine shown above with optional Product Feeder.





* For Built-in / Optional* Items Click Below Link

UNIQUE FEATURES

FLAT Carton / Pouch Size

Min. 35 x 75mm

Max. 90 x 250mm

*Size can be customized
