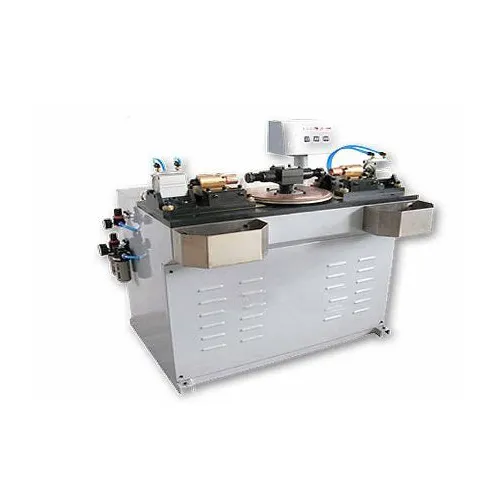

Product Name: 10-25CPM Semi-Automatic Can Body Double-Spot Welder Machine DN60B
Model: DN60B
Operation: Semi-Automatic Pedal Switch Operate Pneumatic Drive
Application: Double Spot-Welding
Can size: D150-300(mm)
CPM: 10-25 CPM (Operator Dependent)
Model
DN60B
Usage
Double Earlug Spot Welding
Operation Mode
Semi-Automatic Pedal Switch Operate Pneumatic Drive
Feed-in Mode
Manual Feed-in
Output Capacity (CPM)
10-25 cans/min. (Operator Dependent)
Applicable Can Diameter
150-300 (mm)
Counting Device
Built-in
Pre-set Current Device
Pre-set Pressing Time Device
Pneumatic Sys.
Pedal Switch
Dual-Earlug Container
Power Systerm Overload & Short-circuit Protection
Provided
Power
2N 380V 50/60Hz 60kw
Protection Grade
Class Index IP20
Electrode Material
High Grade Copper
Standard
IEC60947 for Electrical Sys.
Compressed Air
900L/min @ 0.6Mpa
Weight
350kg
Construction Size
1050 x 800 x 1550 (mm)
Lead time:
4-8 weeks
Packaging
Plywood Case (Standard Export Packaging)
Warranty:
1st Year FREE CHARGE for parts from shipping date + Lifetime services
Operator Manual & Instruction
PDF / Printed paper provided
