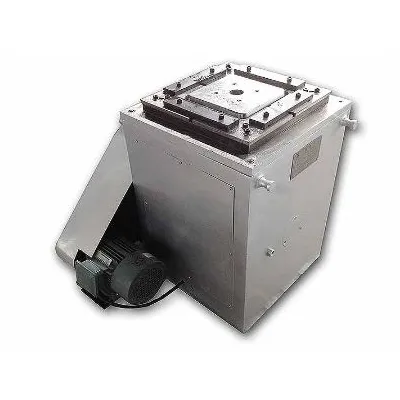

Model
GT3FB18J
Usage
Semi-Auto Square Can Body Flanging
Operation Mode
Semi-Automatic Pedal Switch Operate Mechanical Drive
Output Capacity (CPM)
30 cans/min. (Operator Dependent)
Applicable Can Vol.
18L
Feeding Mode
Manual Vertical Feed-in
Support Material
Tinplate / Steel-Based / Chrome
Material Hardness
T2.5 - DR8
Thickness
Less 0.5mm
Forming Die Changeable Function
Provided
Forming Die Material
High-grade Alloy Tool Steel (Cr12MoV)
Motor Magnetic Starter
Built-in
Power Supply Required
380V AC 50/60Hz Three-phase sys.
Standard
IEC60947 for electrical sys.
Motor Power
0.75KW
Motor Provider
SIEMENS
Construction Size
680 X 1020 X 800 (MM)
Weight
350kg
Shipment Lead time
4-6 weeks from order
Packaging
Plywood Case (Standard Export Packaging)
Warranty
1st Year FREE CHARGE for parts from shipping date + Lifetime services
Operator Manual & Instruction
PDF / Printed paper provided
