Product Name
|

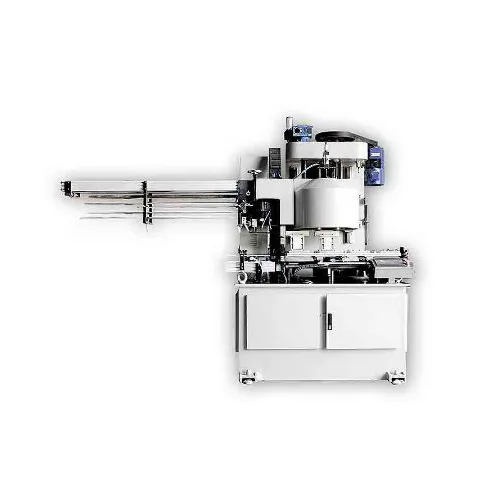

Small Square Can 1-5L Sealing Machine
|
|
Usage
|
Automatic Square Tin Can Sealing
|
|
Item Condition
|
Brand-New
|
|
Applicable Can Shape
|
Square Can
|
|
Applicable Can Vol.
|
1-5 Litre
|
|
Main Color
|
Grey
|
|
Output Capacity (CPM):
|
22-32Cans/min. (Can Size Dependent)
|
|
Machine Operation Mode
|
Automatic Pneumatic-Drive
|
|
Max. Can Height
|
200-450 (mm)
|
|
Max. Sheet Thickness:
|
0.4 (mm)
|
|
Lid Feed-in Mode
|
Automatic Feed-in (Suction Cup Operated Style)
|
|
PLC Device
|
Built-in
|
|
VFD Device
|
Built-in
|
|
Auto Feed-Can-in Detection
|
Provided （For matching seaming linkwork Sys.)
|
|
Auto Lubrication Sys.
|
Buiilt-in (Timely lubricating+Lubricating frequency adjustable)
|
|
Touch Panel Screen Device
|
Built-in 7'' Color Display (English Language Interface)
|
|
Input Conveyor Control System
|
Pacing Speed Drived by Gear Motor （Setting Availble）
|
|
Output Conveyor Control System
|
Constant Speed drived by Gear Motor （Setting Availble）
|
|
Seaming Mode
|
High Precision Double Seaming
|
|
No. of Seaming Rollers
|
6-Roller
|
|
Seaming Roller Material
|
High-grade Alloy Tool Steel (Cr12MoV)
|
|
Seaming Chuck Material
|
High-grade Alloy Tool Steel (Cr12MoV)
|
|
Main Frame Material
|
High Strength Steel for Canmaking
|
|
Power System Overload & Short-circuit Protection
|
Provided
|
|
Pad-Lock Emergency Switch (ON-OFF)
|
Built-in
|
|
Protection Grade for Electrical Switch-gear Box
|
Class Index IP55
|
|
Total Power:
|
2.5kW
|
|
Motor Rotation Speed
|
Variable
|
|
Power Supply Required
|
380V 50/60Hz @ Three-Phase Sys.
|
|
Motor Supplier
|
SIEMENS
|
|
Air Pressure Require
|
No less 0.6MPa
|
|
Pneumatic System Supplier
|
AirTAC
|
|
Touch Panel Screen Device Supplier
|
Schneider Electric
|
|
Linear Motion Guide Rail System
|
HIWIN
|
|
PLC Device Supplier
|
Delta
|
|
Standard
|
IEC60947 for Electrical System
|
|
Construction Size
|
L2600 x W1400 x H2200 (mm) 【entire length customed design provided】
|
|
Weight:
|
2,000kg
|
|
Lead time:
|
12-14 weeks
|
|
Packaging
|
Plywood Case (Standard Export Packaging)
|
|
Warranty:
|
1st Year FREE CHARGE for parts from shipping date + Lifetime services
|
|
Operator Manual & Instruction
|
PDF / Printed paper provided
|
