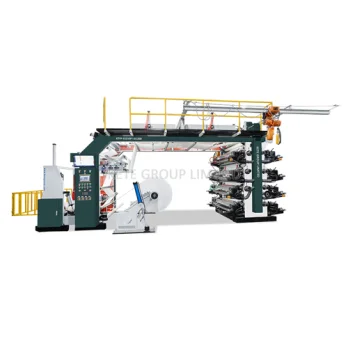

KTFP-ES250P Series Stack Type Paper Flexo Printing Machine

Feature:

This High-Speed Stack Type Flexographic Printing Machine is Specially Designed for High-Quality Roll-to-Roll Paper Printing. Equipped with an Independent Servo-Driven Printing System for Each Printing Unit, Double-Sided Enclosed Chamber Doctor Blade System, Ceramic Anilox Rollers, and Surface Rewinding System, It Provides Precise Drive Control, Stable Paper Handling, and Consistent Printing Quality.

Performance and Characteristics:

PLC Touch Screen Control System

Automatic Unwinding and Rewinding Tension Control System

Unwinding System with EPC (Edge Position Control)

Inter-Color Drying with Centralized Final Drying System

Hydraulic Printing Plate Cylinder Lifting System

Independent Servo-Driven Printing System

Overhead Bridge Belt Conveyor System

Longitudinal and Transverse Registration Adjustment

Double-Sided Enclosed Chamber Doctor Blade System

Japanese Brand Ceramic Anilox Rollers

Pneumatic Shaft-Type Unwinding Roll Loading System

Surface Rewinding System

Main Machine Specification:

Model	KTFP-ES250P
Printing Color	2 / 4 / 6 / 8 colors
Raw Material Width	1000/1200/1500/1700mm (39.4”/47.3”/59”/67”)
Printing Length (Repeat)	190-889mm (7.5”-35”) Up to 2032mm (up to 80")
Max. Mechanical Speed	250m/min
Max. Printing Speed	220m/min
Ceramic Anilox Roller	200-800LPI (Japan Brand)
Rubber Plate Thickness	1.14mm /1.7mm
Doctor Blade	Double-Side Enclosed Type
Color Register Precision	±0.12mm (Vertical/ Horizontal)
Ink	Water Based Ink / Solvent Based Ink / UV Ink
Drying Way	Electrical Heating / IR Heating / UV Drying
Unwind and Rewind Diameter	Φ1200/Φ1500mm (47.2”/59”)
Paper Core Inner Diameter	Φ76mm (3”)
Tension Range	3-50kg
Tension Precision	±0.3kg
Air Supply	0.6Mpa
Power Support	5 Lines 3 Phase 220/380/440V 50/60HZ
