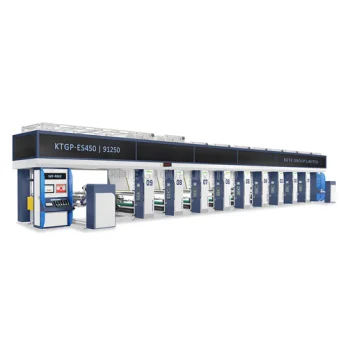

KTGP-ES450 Series Electronic Line Shaft Rotogravure Printing Machine

Feature:

High-Speed Electronic Line Shaft Rotogravure Printing Machine for Flexible Packaging Applications, Including Food, Pharmaceutical, and Personal Care Packaging. Suitable for Printing on BOPP, PET, PE, and Other Plastic Films.

Performance and Characteristics:

Shaftless Printing Cylinder Mounting System
Independent Siemens Servo Motor Drive for Each Printing Unit
Integrated HUAMAO Electronic Line Shaft (ELS) Control System
Automatic Color Register Control System
Four-Zone Closed-Loop Web Tension Control System
Web Video Inspection System
High-Efficiency Hot Air Drying System
Water-Cooled Chilling Roller System
Ink Transfer Roller System
PLC Control System with Touch Screen HMI
Optional: Reverse Printing Turn Bar
Optional: Water-Based Ink Printing
Optional: Automatic Ink Viscosity Control System

Main Technical Specification:

Model	KTGP-ES450/350/250
Printing Colors	4–12 Colors
Raw Material Width	850 / 1050 / 1250 mm (33.5″ / 41.3″ / 49.2″)
Max. Mechanical Speed	450/350/250 m/min
Color Register Accuracy (Vertical / Horizontal)	±0.10 mm (BOPP / PET)
Printing Cylinder Diameter	Ø120–Ø300 mm (4.7″–11.8″)
Max. Unwind and Rewind Diameter	Ø800 mm (31.5″)
Heating Methods	Electric / Gas / Oil / Steam Heating
