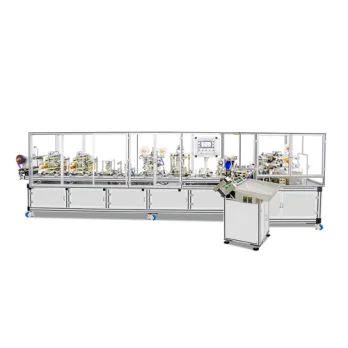

KTPC-D Series High Speed Servo Drive Wine Capsule Making Machine

Feature:

The KTPC-D Series High-Speed Wine Capsule Making Machine Is Designed for the Automated Production of Wine Bottle Capsules Using Heat-Shrinkable PVC, PET-G, and Polylaminate Materials. Featuring an Advanced Servo Motor Drive System, the Series Is Optimized for High-Speed, High-Volume Production of Standard Wine Capsule Designs, with Essential Decoration and Easy-Open Functions. It Provides a Competitive Alternative to European High-Speed Wine Capsule Making Machines for Manufacturers Seeking High Production Capacity, Advanced Automation, and Cost-Effective Investment.

Performance and Characteristics:

Skirt Horizontal Perforation with C-Cut

Skirt Horizontal Tear-off Tape with Aluminum Tongue

Skirt 1/2/3 Color Hot Stamp

Skirt Hot Melt Glue System

Top Disc Hole Punching

Top Disc 1/2/3 Colors Hot Stamp

Top Disc Emboss and Breath Hole

Capsules Online Inspection

Defective Capsule Rejection

Main Technical Specification

Model	KTPC-D (Professional)
Raw Materials	Shrink PVC Film/PET-G Film/Polylaminate
Max. Unwind Width	150mm (5.9”)
PVC /PET-G Film Thickness	60-75mic (μm)
Polylaminate Material Thickness	100-120mic (μm)
Capsules Top Diameter	Φ30mm-Φ44mm (1.18”-1.73”)
Capsules Bottom Diameter	Φ31mm-Φ45mm (1.22”-1.77”)
Capsules Height	■35-80mm (1.4”-3.15”) □35-100mm (1.4”-3.94”)
Max. Mechanical Speed	250Capsules/min
Capsule Making Speed	180-220Capsules/min
