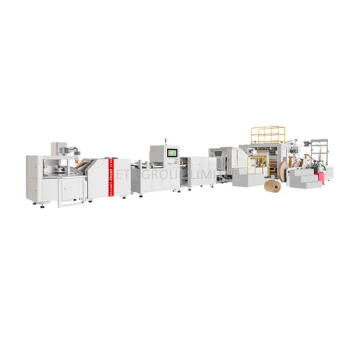

KTPM-BHT Series Fully Automatic Twisted Handle Paper Bag Making Machine

Future

The KTPM-BHT Series Fully Automatic Twisted Handle Paper Bag Making Machine is Designed to Produce Square Bottom Paper Bags with Twisted Paper Handles in Various Sizes. Using Roll-Fed Paper as Raw Material, the Machine Integrates Automatic Paper Feeding, Twisted Handle Making and Attachment, Bag Forming, Bottom Forming, and Finished Bag Collection into a Fully Automatic Production Process. It Is Ideal for Producing Shopping Bags, Retail Bags, Gift Bags, and Other Paper Carry Bags.

Performance and Characteristics

Automatic Roll-Fed Paper Unwinding and Feeding System
Automatic Twisted Paper Handle Making System
Automatic Twisted Handle Attachment System
Automatic Paper Bag Forming System
Automatic Square Bottom Forming System
Automatic Finished Bag Collection System
Inline 1/2/4/6-Color Flexographic Printing Unit

Main Technical Specification

Model	KTPM-BHT330	KTPM-BHT450A	KTPM-BHT550N
Bag Making Width	200-330mm (7.9”-13.0”)	220-450mm (8.7”-17.7”)	220-550mm (8.7”-21.7”)
Bottom & Side Width	80-180mm (3.1”-7.1”)	100-200mm (3.9”-7.9”)	100-300mm (3.9”-11.8”)
Paper Tube Length	270-430mm (10.6”-16.9”)	300-530mm (11.8”-20.9”)	380-660mm (15.0”-26.0”)
Paper Jumbo Roll Width	590-1050mm (23.2”-41.3”)	670-1330mm (26.4”-52.4”)	670-1730mm (26.4”-68.1”)
Max Paper Jumbo Roll Diameter	Φ1500mm (59.1”)	Φ1500mm (59.1”)	Φ1500mm (59.1”)
Paper Core Diameter	Φ76/152mm (3.0”/6.0”)	Φ76/152mm (3.0”/6.0”)	Φ76/152mm (3.0”/6.0”)
Paper Thickness	80-150gsm	80-150gsm	80-150gsm
Paper Bag Making Speed	30-150 pcs/min	30-130 pcs/min	30-130 pcs/min
Cutting Type	Sawtooth cutting	Sawtooth cutting	Sawtooth cutting
Machine Power	42kw	43kw	54kw
Machine Weight	16000kg	18000kg	23000kg
Machine Size (LWH)	14200x5500x2500mm	15300x5500x2500mm	17700x5500x2800mm
Inline Flexo Printing (*Optional)	1 / 2/ 4 /6 colors	1 / 2/ 4 /6 colors	1 / 2/ 4 /6 colors
Double Layers (*Optional)	Yes	Yes	Yes
Shaftless Auto Loading (*Optional)	Yes	Yes	Yes
Auto Stacking (*Optional)	Yes	Yes	Yes
Hot Glue Tape (*Optional)	Yes	Yes	Yes
Inline Inkjet Printing (*Optional)	Yes	Yes	Yes
Inline Inspection (*Optional)	Yes	Yes	Yes
