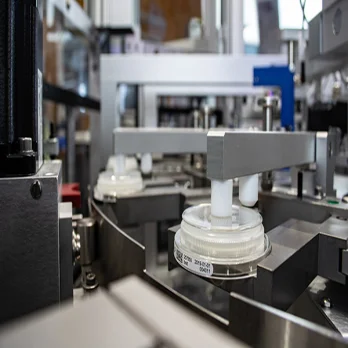

Petri dishes labeller (PDL)

Our PDL model series is an example of our specialized machine construction. It labels Petri dishes by applying serialized DMC labels with high precision and a speed of 130 products/min. The system incorporates mechanical engineering, label material, and a thermal transfer printer to meet the satisfaction of our international customers. Petri dishes are fed into the labeling system from the filling and sealing system.

Using a star wheel, the system transports the products through different stations for labeling, reprinting, and DMC inspection. The data matrix code is checked for quality during this process, and any products with insufficient barcode quality are rejected.

With our RAPID SM label dispenser, the most accurate labeling device in the market, we achieve an accuracy of +-0.2 mm at a labeling speed of 60 m/min, ensuring consistent product quality. The signals are directly connected to our developed stepper motor card without any delays.

In addition to labeling systems, we provide consumables such as gamma-irradiated adhesive labels and thermal transfer foils to achieve flawless labeling results.

Models

PDL 60eco

• for filled, closed Petri dishes
• 60 products/min (2 lanes)

PDL 60

• For filled, closed Petri dishes
• 100 products/min (rotating star)

PDL 260

• For filled, closed Petri dishes
• 100 products/min (2 rotating stars)

PDL 2260

• For filled, closed Petri dishes
• 200 products/min (2 rotating stars)

Basic Equipment

• Base frame with height-adjustable feet
• Conveyor belt with side guide rails
• Stabilization belt
• Product singulation
• Label dispenser
• Thermal transfer printer
• Label pressing unit
• Electronic control
• Touch panel

Comparison of the advantages of the two systems

linear system

• lower investment costs
• Output up to 35 products/min
• Throughput of the two-lane system up to 60 products/minute
• Accuracy (+- 0.5mm)
• Category process safety B - with full protection A
• Product flow 180°

rotating system with turnstile

• higher accuracy (+- 0.2 mm)
• seamless pulse movement
• throughput (up to 120 ppm)
• Category process reliability A+
• Product flow can be chosen between 90°|180°|270°| 360°

Additional options

• pressure unit
• automatic format change
• Inspection (print control, print data control, presence, alignment)
• product ejection
• Serialization (hardware and software)
• Audit Trail (21 CFR Part 11)
• inlet and outlet buffer etc.
