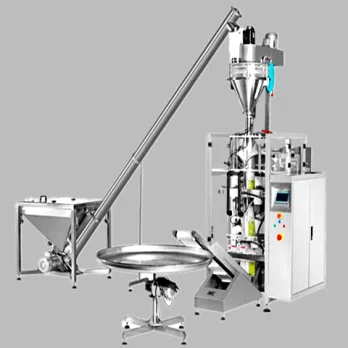

1 KG Powder Packing machine
This is the fully automatic powder packing machine. The machine is able to do dosing and filling the powder into the pouch which the machine made from the film, then sealing and cut. High precise and fast.
You only need to add the powder into the feeder and set the volume per pouch on the touch screen, put the roll film on the machine, then the machine will begin working, from powder to one bag, Save cost for you. Lot number printer is an optional device. There are many different kinds of flour powder packing machines.
Range of application
Powder – flour – Spice – corn flour – Sugar powder – Soda powder – Sweet powder
Features:
* Low-cost high gain, high speed, and efficiency.
* Famous brand PLC control system, large touch screen, convenient to operate;
* Film drawing down system and horizontal sealing controlled by servo motor;
* Minimize the loss with complete automatic warn protection function;
* Powder filling machine can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
* The way of bag making: the machine can make a pillow-type bag and standing bag according to customer’s requirements.
Parameters:
|
I term
|
Content
|
|
Capacity
|
MAX 20-30 bags/min ( the packing speed will be changed according to the bag length, film material, and the packing product)
|
|
Accuracy
|
≤±1%
|
|
Film width
|
220-520 mm
|
|
Bag type
|
pillow bag and gusseted bag
|
|
Filling range
|
≤2.8L
|
|
Film thickness
|
0.04-0.09 mm, the best is 0.07-0.08 mm
|
|
Package material
|
thermal composite material., like BOPP/CPP, PET/AL/PE, etc
|
|
Air consumption
|
0.8 Mpa 0.35 cmb/min
|
|
Voltage
|
Signal phase 220V, three phase, 380V 50 /60 HZ
|
|
Total height
|
L4.5m * W3.2 m * H3.0m
|
