  • Application

This cartoner mainly suitable for automatic cartoning of small products such as food, medical supplies, toys, stationery, auto parts, cosmetics, hardware, daily commodities, etc.

  • Parameter

Model: WEM101

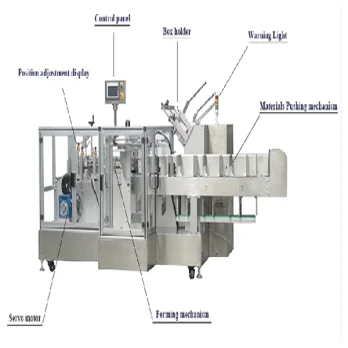

Name: Fully automatic cartoning machine with stuck

Voltage: 220V 50Hz/customized according to your voltage

Speed:30-40 cartons/min

Power: 1.1KW;

Air compressor: ≥0.6mpa

Net Weight:1200KG

Carton Size Range (Able to customize) :
L200-100 * W160-40  * H80-15 mm
L220-120 * W190-50  * H120-40 mm
(If the carton width and length are the same, it’s not safe for the machine to open the carton.)

Carton Material feeding Height:500mm

Requirement for carton:250-350g/m2, Carton indentation is not less than 0.4mm, with pre folding effect

  • Equipment Feature

1. Adopt Simens PLC programmable control system, intelligent interface, and simple operation.

2 . Use the servo motor, to ensure the machine's stable performance.

3 . Speed is from 20~60 carton /min according to carton style.

4. Add an electric eye to detect the goods so no goods then not pick carton, avoid empty carton.

5 . With a handwheel and visual dial gauge, easy change over the different carton size packing.

6. Carton store shelf able to store cartons, adjustable frame for different size cartons.

7. High carton feeding rate, carton neatness, and folder ensure the future successful goods loading and carton sealing.

8. The transmission and friction parts are strictly following the standard implementation, with less wear and tear in the later stage, reducing the replacement of accessories.

9. The machine is equipped with an inverter, PLC, voltage regulator, etc. to ensure the stable operation of the machine.

10. Stato Light, alarm when machine malfunction or lack cartons.

11. E-stop device.Machine's fully automatic stops working when the machine door is open.

12. Full 304 stainless steel, for stable performance.

13. For the carton material, suggest 250-350g/m2, Carton indentation is not less than 0.4mm, with pre folding effect, it’s very important to ensure the smoothful carton forming and good loading.

14. Machine electrical components can be customized and upgraded according to customer needs.

15. Options

A visual inspection Machine will detect the defective goods before cartoning.

Cartoning Machine will fully automatically fill the several cartons into cartons, sealing them with tape or straps.

End weigher checker can detect the wrong weight carton.

Ink printer or label stick machine, stick the goods information on the carton or carton.

Robot Palletizer The palletizing robot will stack the cartons according to your requirements.

Filling the instruction book card into a carton

  • Installation Service

1. We provide videos and an instruction manual to show the process of installation.
2. We provide training for installation for free in our factory.
3. We can send a technician to the buyer’s factory to install the machine and provide a training course.

  • After Sales Service

1. One-year warranty and free lifetime technique support.
2. Free spare parts would be supplied if the machine has broken within the warranty period.
3. After the warranty period, the spare parts for replacement are offered based on a certain charge.
