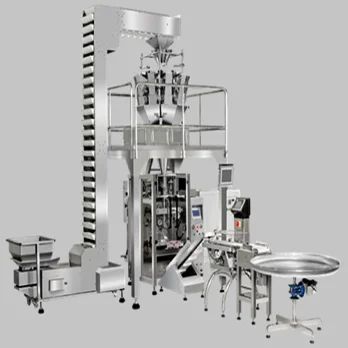

Chips Packing Machine
This machine is the fully automatic chips packing machine. The machine can do dosing and filling the chips into the pouch which is the machine-made from the film, then sealing and cut. High precise and fast.
You only need to add the chips into the feeder and set the volume per pouch on the touch screen, put the roll film on the machine, then the machine will begin working, from powder to one bag, Save cost for you. Lot number printer is an optional device.
There are many different kinds of chips packing machine.
The scope of packaging:
It’s suitable to use in packing the high accuracy and easy fragile material, such as puffy food, crispy rice, potato chips, snacks, candy, pistachio, sugar, apple slices, dumpling, chocolate, pet food, small wares, etc.
Operating principle & working process
The products come from the production line
→When the products drop into the vibrator with bucket hopper, it will be vibrated out to the conveyor→ the conveyor will keep sending the product to the weigher until the weigher sending the signal to it.→the multi heads weigher is for dosing the product and dropping it to the packing machine time by time. It is continuously given the finished signal to the packing machine.→When the packing machine gets the signal, it will feedback to the weigher and start dropping down the product, then the machine starts drawing down the film, printing the date, sealing, and cutting the package.→ When the bags made out, they will be transferred out by the finished product conveyor and then to the turntable or the secondary packing.
|
Item
|
Content
|
|
Capacity
|
60-70 bags/min/machine according to the bag sizes, it is also affected by the quality of film and bag length.
|
|
Accuracy
|
≤±1.5%, depending on the measuring equipment & materials
|
|
Bag size
|
(L)50-330mm(W) 50-200mm
|
|
Film width
|
Max 420mm
|
|
Bag type
|
Pillow bag, punching hole bag, gusseted bag
|
|
Pulling belt type
|
Double-belts pulling film
|
|
Filling range
|
10-2000ml
|
|
Film thickness
|
0.04-0.09mm
|
|
Film material
|
BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc
|
|
Air consumption
|
0.8Mpa 0.3m³/min
|
|
Total power
|
6.045 KW (depend on the specific circumstances.)
|
|
Voltage
|
Single phase220V, three phase380V, 50HZ (depend on the customer’s country)
|
|
Air compressor
|
Not less than 1 CBM
|
Features:
Main Performance And Structure Features:
1. A complete package process. This vffs packing machine is capable of automatically completing a series of packaging processes for filling, metering, bagging, date printing, charging (exhaust), and product output.
2. Save time, effort, power, and smarter operation.
3. Multi-selection of packing bag you can choose. it not only could provide the pillow bag, angle fold bag, hang hole bag, link bag, etc but also it could provide packing with a new and fashion design, excellent technology.
4. Provide good quality and high precision, efficiency. Meanwhile, it would not crash the materials.
5.Easy to operate and use. VFFS high-speed machine is a Simple and generous food packing machine.
6. A multi head weigher-The multi head weigher packing machine (four servo motors) has 10 heads high-speed weigher.
Installation Service
1. We provide videos and instruction manuals to show the process of installation.
2. We provide training for installation for free in our factory.
3. We can send a technician to the buyer’s factory to install the machine and provide a training course.
After Sales Service
1. One year warranty and free lifetime technique support.
2. Free spare parts would be supplied if the machine has broken within warranty period.
3. After the warranty period, the spare parts for replacement are offered based on a certain charge.
