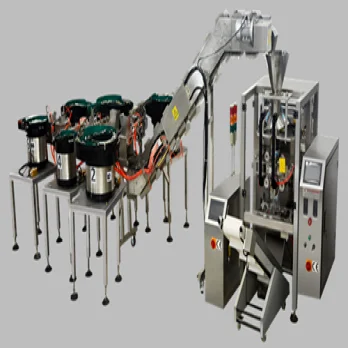

Furniture Kit Mix Packing Machine
Furniture Packing Machine is a fully automatic counting and packing machine for furniture kit and hardware spare parts like screw, bolt, nut, washer, spring, plug. High precise and fast, save the labor cost for you. A type of hardware packing machine widely used in fasteners, hardware, furniture, bathroom filed.
You only need to put the spare parts into the hopper and roll film on the packing machine, set in the quantity that you need to in bag and open the machine. The machine will do the automatic counting of the spare parts and make the film to be a bag, filling the spare parts into the bag, sealing and cut. The lot number or other printing information is an optional device.
Parameter:
|
Speed
|
10-60bag/min
|
|
Counting range
|
0~100000个
|
|
Pouch size
|
（L）40-160、（W）30-110mm
|
|
Film width
|
220mm
|
|
Film thickness
|
0.03~0.10mm
|
|
Gas consumption
|
≥0.03㎡/ min
|
|
Pressure
|
0.5-0.7Mpa
|
|
Sealing type
|
Pillow sealing, side sealing with Europe hole or chain bag
|
|
Power
|
2500W
|
|
Net/gross wt
|
350kg/450kg
|
|
Voltage
|
220v、380V/50hz/60hz
|
|
Pack material
|
OPP/CPP、OPP/PE MST/PE PET/PE
|
|
Dimension
|
L1400×W1200×H1600mm
|
Features:
1. According to screw/special parts sample tailored to the vibration plates with a precise count control device, to ensure that every bag is accurate and correct.
2. Adopts pneumatic structure, the whole machine is more secure, stable, reliable.
3. Advanced PLC control system and various automatic alarm protection functions, convenient for daily maintenance and reduce wastage.
4. It completes the whole procedure of metering, filling, bagging, date printing, charging(exhausting), counting automatically.
5. The unique design of the packing seal technology, make the sealing nice and strong.
6. Equipped with a chain conveyor trailer, it can be feed by manual if the vibration plates are un-workable.
Installation Service
1. We provide videos and instruction manuals to show the process of installation.
2. We provide training for installation for free in our factory.
3. We can send a technician to the buyer’s factory to install the machine and provide a training course.
After Sales Service
1. One year warranty and free lifetime technique support.
2. Free spare parts would be supplied if the machine has broken within the warranty period.
3. After the warranty period, the spare parts for replacement are offered based on a certain charge.
