  • Application

Ultrasonic sachet sealing machine is suitable for nonwoven fabric cold sealing material, widely used in food, pharmacy, household chemicals, farm chemicals, plastic products, and other powder goods of the special industry. Such as herbal, desiccant, activated carbon, fertilizer, perfume satchel, seeds, and self hot powder, etc.

  • Parameter

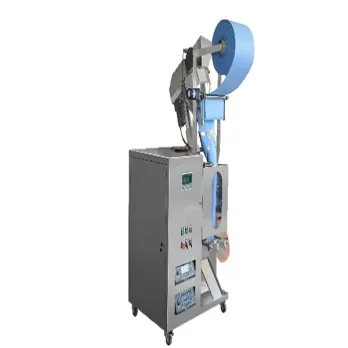

Items: Self Hot Powder Sachet Packing Machine | Ultrasonic Sealing Machine

Model: WE-388FM

Packing speed: 20-60 bags/min

Bag size :(L)40-200mm     (W)30-150mm

Bag making mode: Pillow-type bag, standing bag, punch

Max packaging film width: 320 mm

The thickness of the film: 0.04-0.08 mm

Air consumption: 0.8Mpa 0.5m/min

Main power/voltage :1.35 KW/220 V 50-60 Hz(customized)

Dimension :(L)1200×(W)900×(H)1900 mm

The weight of the switchboard: 450 kg

  • Equipment Feature

1. Automatic granule packing machine can finish the process like conveying bag, bag making, filling, weighing, sealing, cutting, counting, lot number, etc.

2. Bilingual display screen control system, stainless steel cabinet. Set up the required data(including filling, weighing, bag size, etc) in the visible settings, and the control system automatic optimization match with all the programs to achieve the best packing speed precisely.

3. Stepper Motor control, this system has the advantage of being precise, needless to adjust the other parts.

4. It has a color system controller, so that can get the complete trademark design.

5. Suitable for the complex film and tin foil and other packing material.Fine packaging performance, low noise, clear sealing texture, and strong sealing performance.

  • Advantage

1. The machine is according to the screw to determine the volume for each bag, we can change the unit volume in a certain range by adjusting the PLC parameter and the measuring cup. The black line is used for Nitrogen-filling prior to and after bag filling.

2. Ultrasonic controller performance stable, the sealing model got the even temperature so bag sealing is tight and nice, help you got more customer. Different nonwoven materials, soft or hard, thickness will need different perfect sealing temperatures so we will adjust the Ultrasonic controller according to your exact material.

3. Bag former
it's hand-made by our craftsman from completely one aluminum, so it's very smooth and anti-rust.
If the bag former is welded from several irons then its rough surface and easy rust. It will be got the film stucked and affect the procedure. You can change the bag former to make a different width bag.

4 . Sealing model and Cutter
 The sealing mode is made of titanium steel which is wear-resistant, ultrasonic sealing, easy to operate, and maintain. Double nonwovens packing avoids material leakages, Sealing pattern can be customized according to your requirement.

  • Attention

For the different thicknesses of hard or soft of Non-Woven fabric, there is a relevant perfect ultrasonic frequency to make the tightest sealing. So we suggest that use your exactly Non-Woven fabric to test the machine for you.

  • Installation Service

1. We provide videos and an instruction manual to show the process of installation.
2. We provide training for installation for free in our factory.
3. We can send a technician to the buyer’s factory to install the machine and provide a training course.

  • After Sales Service

1. One-year warranty and free lifetime technique support.
2. Free spare parts would be supplied if the machine has broken within the warranty period.
3. After the warranty period, the spare parts for replacement are offered based on a certain charge.
