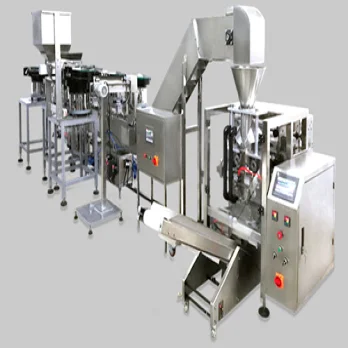

Screw Packing Machine
Screw Packing Machine is a fully automatic counting and packing machine. The machine is able to count or weighing screw, nut bolt, washer, furniture kit, hardware parts, fasteners, and small parts into pouch or box according to your requirement. High precise and fast, save the labor cost for you.
Features:
1) Accuracy: 99.9% according to the quantity with fiber counting which is much big range direct, fast and stable reaction speed.
The end weighing director is optional for higher accuracy by rejecting the out tolerance dose.
2) Capacity: About 100~300 pcs /min per plate according to the exact product.
3) Durable: Lower malfunction rate and Lifetime for about 10 years .
4) Convenient:
Versatility: The same one torsional vibrator is able to use for a certain range of products in different size and shape
Ergonomic condition: ergonomic condition operation area for the parts manually feeding which is unworkable with hardware counting packing machine.
Feeding : Staff is convenient to feeding enough parts into the torsional vibrator which the height is about 800~900mm above the grand .
Fully automatic elevator or hopper is optional.
Quickly format change: remaining parts will be cleared in 5 min with pressing one button.
Lower Noise and surface wear with the specific glue on the surface of the torsional vibrator. Soundproof enclosure is optional.
5) Customize: The size and principle of the torsional vibrator is customized to optimize feeding and alignment according to the exact parts, with linear vibrating for hung or full-wave vibrating intensity
6) Installation: Machine is assembly so easy disassemble for the shipment and installation for working.
7) Reserve the position for the future additional torsional vibrator.
8) Multifunction :
Fully automatical process of feeding, alignment, counting, reject wrong quantity, bag forming, filling, sealing and cutting
Options: Easy connecting to elevator conveyor, printing, end weighing checker or bag quantity counting device, exhausting or inflating device.
PLC: Adopt import PLC control unit matched with 7″color touch displayer to realize multifunctional intelligent control.
Independently PLC control unit for the torsional vibrator and packing machine
Stainless steel bearing structure with pneumatic reel holder
Bag appearance is neat and firm
Intelligent temperature control unit
Step motor pulling the film
Electric eye tracing fix the accurate cutting position,
Thermoregulator or impulse for PE for composite version
Cutter is durable with nickel plating and hardens processing.
Laborate bag forming tube avoids film stuck or wrinkle.
Status light: Alarm system if any malfunction such as miscounting, lack of parts or film, parts stuck, empty bag.
The memory of a different kind of packing input parameter.
Adjustment: Measuring range and Bag length adjustment via encode type.
E-stop if the secure door opens or reset target production capacity is reached.
Freedom combines the independent vibrator as well as the sequence so improve the speed and reduce the wastage for mixing parts packing or link.
Parameter:
Speed
|
10-60bag/min
|
Counting range
|
0~100000个
|
Pouch size
|
(L)40-320、(W)30-200mm
|
Film width
|
420mm
|
Film thickness
|
0.03~0.10mm
|
Gas consumption
|
≥0.03㎡/ min
|
Pressure
|
0.5-0.7Mpa
|
Sealing type
|
Pillow sealing, side sealing with Europe hole or chain bag
|
Power
|
5700W
|
Net/gross wt
|
900kg/1200kg
|
Voltage
|
220V、380V/50hz/60hz
|
Pack material
|
OPP/CPP、OPP/PE MST/PE PET/PE
|
Dimension
|
L4000×W1500×H1800mm
|
Installation Service
1. We provide videos and instruction manuals to show the process of installation.
2. We provide training for installation for free in our factory.
3. We can send a technician to the buyer’s factory to install the machine and provide a training course.
After Sales Service
1. One year warranty and free lifetime technique support.
2. Free spare parts would be supplied if the machine has broken within warranty period.
3. After the warranty period, the spare parts for replacement are offered based on a certain charge.
