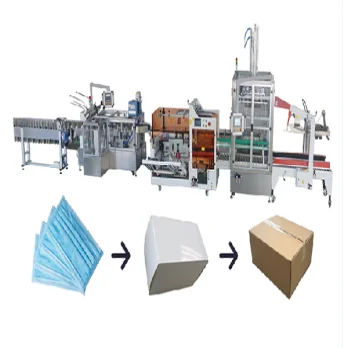

FULLY AUTOMATIC CASE ERECTOR LINE
This case erector line is mainly suitable for automatic cartoning of small products such as food, medical supplies, toys, stationery, auto parts, cosmetics, hardware, daily commodities, etc.
The Case Erector Line machine consists of cartoning machine and case erector machine, a loading machine, and a case sealer. This line automatically forms the carton and collected them according to your requirement loading them into the case and sealing the case with tape. You can also add the bag machine, weigher checker, labeling machine, POF shrink wrap machine, robot, and palletizer.
Name: Cartoning machine with glue
Model: WEM102
Voltage:220V 50Hz/customized according to your voltage
Power: Box Machine 1.1KW； Glue machine 3.5KW
Speed :40-50 box/min
Box Size Range(Able to be customized):
L200-100 * W160-40 * H80-15 mm
L250-120 * W180-50 * H125-40 mm
(If the box width and length are the same, it’s not safe for the machine to open the box.)
Box Material feeding Height: 500mm
Requirement for box: 250-350g/m2,Carton indentation is not less than 0.4mm, with prefolding effect
Air compressor :≥0.6mpa
Net Weight:1200KG
Dimension: L3150XW1660XH1770mm
Name: Box Erector
Model: WEBE400
Voltage:220V 50Hz/customized according to your voltage
Power: 0.4kw
Speed: 10~15 box/min according to a box size
Box Size Range(Able to customized):L260-400 * W170-350 * H200-260 mm
Tape width: 48~72mm
Carton lose: 1%
Forming method： Vertical Forming
Air compressor: ≥0.6mpa
Net Weight:550KG
Dimension :L2500XW1950XH1500mm
Name： Box Loading Machine
Model： WEBL420
Voltage： 220V 50Hz/customized according to your voltage
Power：1.8kw
Speed According to how to loading
Box Size Range(Able to customized)： L220-420 * W180-280 * H100-370 mm
Air compressor：200~260L/MIN
Net Weight：1500KG
Dimension: L2900XW1500XH1650mm
Name: Box Sealer Machine
Model: WEBS600
Voltage: 220V 50Hz/customized according to your voltage
Power: 0.2kw
Box Size Range(Able to customized): L200-600 * W150-500 * H150-500 mm
Tape Size: 36mm，48mm，60mm（Choose one of them）
Belt Speed: 20l/min
Air compressor: ≥0.6mpa
Net Weight: 300kg
Dimension :L1700XW930XH1510mm
1. we provide videos and an instruction manual to show the process of installation.
2. we provide training for installation for free in our factory.
3. we can send a technician to the buyer’s factory to install the machine and provide a training course.
1. One-year warranty and free lifetime technique support.
2. Free spare parts would be supplied if the machine has broken within the warranty period.
3. After the warranty period, the spare parts for replacement are offered based on a certain charge.
