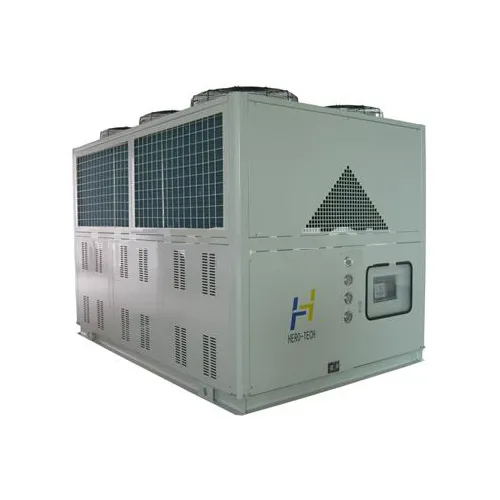

Air Cooled Low-temp Screw Chiller 70HP To 85HP

Air Cooled Low-temp Screw Chiller 70HP To 85HP

Features

  • Coolant temperature range from 5Γ’Γ―ΒΏΒ½Γ―ΒΏΒ½ to -40Γ’Γ―ΒΏΒ½Γ―ΒΏΒ½.

  • High efficient semi-hermetic twin-screw compressor adopted, high COP, steady performance and long service

  • life.

  • Compressor stepped capacity control, minimize starting current and impact to grid

  • 25%-100% continuous capacity control, ensuring compressor full performance, saving running cost for customers.

  • High accuracy touch screen and imported PLC controller adopted.

  • Units are completely tested and operated at full load, leave factory with refrigerant, can be start once water and power is connected.

  • Compressor with built-in exhaust pot silencer ensures low noise running.

  • Corrosion-resistance water system upon request.

  • Refrigerant option:R22, R407C,R404A, R134A and R410A.

Specifications

Model

HTSL-170A

HTSL-190A

HTSL-220A

nominal cooling capacity

-10C

kw

112

123

146

Β

-20C

Β

75

82

97

Β

-30C

Β

56

61

72

power source

Β

3PHΒ  380VΒ  50HZ

refrigerant

type

Β

R22Β  R404A

compressor

type

Β

Semi-hermetic screw

Β

power

kw

67

73

82

condenser

type

finned copper tube + low noise outer rotor fan

Β

evaporator

type

Β

Shell and tube

Β

inlet and outlet

inch

4

4

4

dimension

Length

mm

2950

3200

3500

Β

Depth

mm

1950

1950

1950

Β

Height

mm

2200

2200

2200

weight

kg

2580

2750

3000

Β
