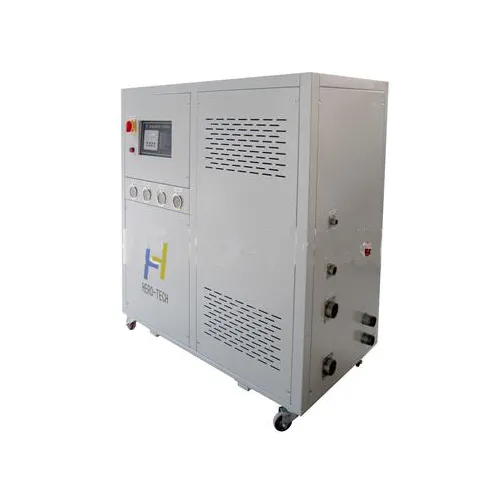

Water Cooled Packaged Industrial Chiller 9kw to 48kw

Features

Specifications

model			HTIE-3W	HTIE-4W	HTIE-5W	HTIE-6W	HTIE-8WD	HTIE-10WD	HTIE-12WD	HTIE-15WD
nominal cooling capacity		kw	9.45	13.5	15.4	17.7	27	3 0	34	48
		ton	2.693	3.84	4.39	5.03	7.68	8.53	9.95	13.65
max power consumption		Kw	9.45	13.5	15.4	17.7	27	30	11.9	16.25
power source			3PH 380V 50HZ
refrigerant	type		R22
	control		thermostatic expansion valve
compressor	type		hermetic scroll
	power	kw	2.7	3.5	4.55	5.2	3.5*2	4.55*2	5.2*2	7*2
condenser	type		finned copper tube + low noise outer rotor fan
	cooing water flow	m3/h	2.1	2.6	3.5	3.6	5.2	6.76	7.9	10.7
	inlet & outlet	inch	1-1/2	1-1/2	1-1/2	1-1/2	1-1/2	1-1/2	1-1/2	2
evaporator	type		copper coil built-in storage tank
	coolant flow	m3/h	1.58	2.3	2.58	3	4.6	6.2	5.85	8.25
	tank volume	liter	60	60	60	90	150	200	200	330
	inlet and outlet	inch	1	1	1	1	1-1/2	2	2	2
pump	power	Kw	0.37	0.37	0.75	0.75	1.5	1.5	1.5	2.25
	max head	m	22	22	30	30	25	25	25	28
	max flow	m3/h	5.4	5.4	8.1	8.2	8.1	13.5	13.5	25.2
safety devices			inner thermostat for compressor motor, over-current relay, high and low pressure switch, flow switch, three phase protection relay, discharge gas thermostat, level switch
dimension	length	mm	850	850	1050	1050	1250	1250	1250	1650
	depth	mm	480	480	550	550	680	680	680	850
	height	mm	1020	1020	1150	1150	1380	1380	1380	1650
weight		kg	125	135	160	180	230	260	330	420
