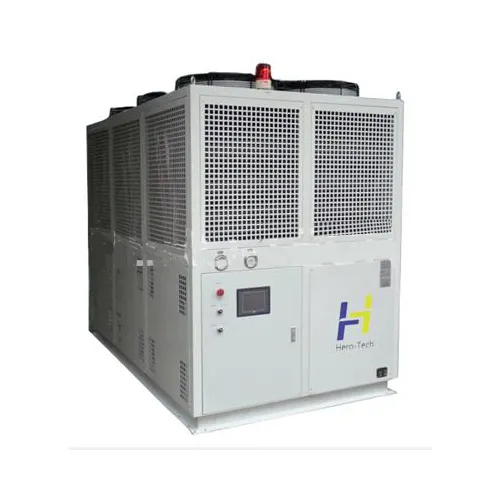

Air Cooled Single Screw Low-temp Chiller 100HP To 150HP

Air Cooled Single Screw Low-temp Chiller 100HP To 150HP

Features

  • Its supper cooling capacity makes it can be used for food preservation of Hotel, restaurant, supermarkets, cold storage, food processing, Pharmaceutical and chemical products processing

  • The water-cooled chillers consist of a horizontal shell-tube condenser and evaporator. With the advantages of concise structure, stable heat exchange, endurable efficiency and easy maintenance, the water cooled screw chiller is well know as an ideal unit for central air conditioning system;

  • The air-cooled chillers equip with finned type condenser, shell and tube evaporator, and slow speed big

  • High reliability, less accessories, no vulnerable part, stable operation, long service life. 3. The chiller unit adopted SEIMENS PLC control system, equipped with simple and generous Computer-human interface, easy operation, high degree of automation; achieved unattended operation;

  • Due to the intelligent control, the units can adjust output of the compressor automatically according to the variable load. So that the units can be operate with high efficiency and save energy at any time.

  • The micro-computer control system we used has functions of safe protection, communication, failure judgment automatic adaptation, etc.

  • The screw type with small footprint and compact pipeline design only need add water pips outside. All of those benefits make the units easy to be installed and maintained.

  • The screw type chillers are equipped with the most advanced import twin-rotor screw semi-hermetic compressor with 5:6 teeth ratio. The unloading energy control device of the compressor can realize multi-grade and step less energy adjustment

  • The main refrigeration parts we used are all the national or international famous products with excellent efficiency and reliable performance.

  • Multi-protection: High/low pressure protection, anti-freeze protection, power-phase sequence protection, phase-lack protection, the water-flow inadequate protection, overheating protection of compressor motor, automatic start-up function after power cut.

Specifications

Model

Cooling capacity (kw)

Compressor power (kw)

Evaporator

Dimension (mm)(L*W*H)

Weight (kg)



-10�

-20�

-30�



Coolant flow (m3/hr)

Coolant in/out (inch)



N.W

R.W











-10�

-20�

-30�









HTSL-100A

64

43

32

40

11

7.4

5.5

3

2200*1760*2200

1350

1550

HTSL-130A

85

56

42

50

14.6

9.6

7.2

3

2200*1760*2200

1650

1890

HTSL-140A

92

61

45

55

15.8

10.5

7.7

4

2500*1850*2150

1950

2250

HTSL-170A

112

75

56

67

19.3

12.9

9.6

4

2950*1950*2200

2250

2580

HTSL-190A

123

82

61

73

21.2

14.1

10.5

4

3200*1950*2200

2400

2750

HTSL-220A

146

97

72

82

25.1

16.7

12.4

4

3500*1950*2200

2600

3000

HTSL-250A

168

112

83

95

28.9

19.3

14.3

4

4000*1950*2200

2860

3300

HTSL-300A

201

133

100

115

34.6

22.9

17.2

5

4800*1950*2200

3000

3450

HTSL-360A

239

159

118

133

41.4

27.3

20.3

5

5500*2100*2200

3250

3700
