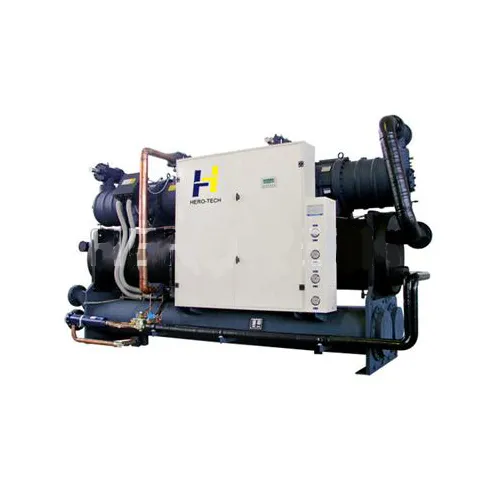

Water Cooled Screw Chiller HTS-WD Series 240kw to 650kw

Water Cooled Screw Chiller HTS-WD Series 240kw to 650kw

Features

  • Well Known Brand Compressor

  • Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor. The latest 5 to 6

  • patented screw rotor profile with excellent efficiency.

  • Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running.

  • Most advanced patented highest precision manufacturing process.

  • Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.

  • Wide range of refrigerant for option, including R134a, R407c and R22(R404a, R507c upon request).

Specifications

Model

HTS-240WD

HTS-320WD

HTS-340WD

HTS-420WD

HTS-460WD

HTS-540WD

HTS-620WD

nominal cooling capacity

kw

240

316

344

420

460

542

626.8



ton

68.24

87

97.81

119.42

130.79

154.11

178.22

power consumption

kw

60

76

84

102

112

126

146

power source



3PH  380V  50HZ

refrigerant

type



R22



Charge

kg

22*2

27*2

33*2

38*2

42*2

48*2

55*2



control



Thermostatic expansion valve

compressor

type



Semi-hermetic screw



power

kw

30*2

38*2

42*2

51*2

56*2

63*2

73*2



Start mode



Y-�



Energy regulation

%

0-25-50-75-100

evaporator

type



Shell and tube



Flow rate

m3/h

41

52.2

59

72.2

79

91.2

99.4



Water resistance

KPa

38

42

42

45

46

43

45



inlet and outlet

inch

4

4

5

5

6

6

8

condenser

type



Shell and tube



Flow rate

m3/h

50

64.6

73.2

90.4

98.4

112

123.4



Water resistance

KPa

39

41

42

42

42

45

48



inlet and outlet

inch

4

4

5

6

4*2

4*4

5*2

Safety devices

Inner thermostat for compressor motor, unit overload relay, high and low pressure switch, freeze protection thermostat, phase protection relay, discharge gas thermostat, flow switch

dimension

Length

mm

2800

2800

2950

2950

3150

3480

3480



Depth

mm

780

780

810

810

850

875

895



Height

mm

1650

1650

1650

1650

1750

1850

1850

weigh

kg

1800

1850

2200

2450

2650

2800

3450
