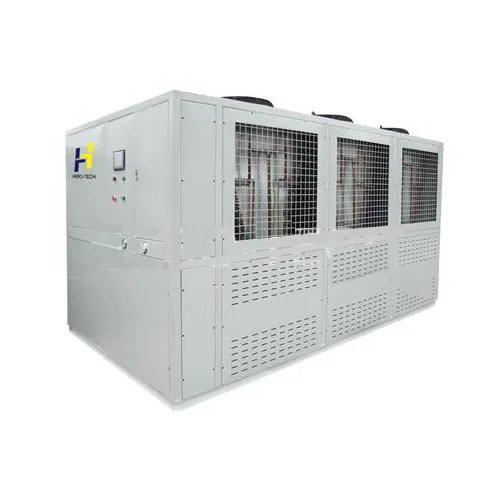

Air Cooled Screw Chiller 190KW To 280KW

Air Cooled Screw Chiller 190KW To 280KW

Features

  • W shape aluminum fin type condenser, assuring adequate heat exchanging area within smaller unit size

  • High efficient evaporator with internal thread copper tube.

  • Large air volume axial fan with metal blades. Motor separated from net-cover, fixed on exhaust port by metal

  • Siemens PLC control, LCD touch screen interface.

  • Standard design charged R22, CFC Free R407C, R410A,R404A,R134A for option.

  • 380V-415V/50HZ 3PH for standard design. Different design on customers' request.

Specifications

Model

HTS-200AD

HTS-260AD

HTS-280AD

nominal cooling capacity

kw

192

252

274

power source



3PH  380V  50HZ

refrigerant

type



R22�R404A



control



Thermostatic expansion valve

compressor

type



Semi-hermetic screw



power

kw

40*2

50*2

55*2

condenser

type



finned copper tube + low noise outer rotor fan

evaporator

type



Shell and tube



inlet and outlet

inch

4

4

5

dimension

Length

mm

3200

4000

4800



Depth

mm

1950

1950

1950



Height

mm

2200

2200

2200

weigh

kg

2500

2950

3350
