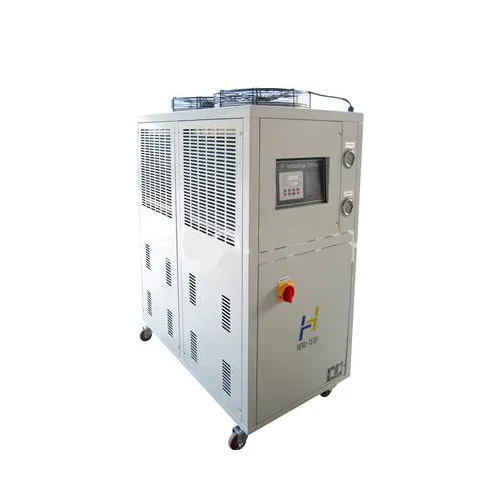

Air Cooled Water Industrial Chiller 8kw To 16kw

Air Cooled Water Industrial Chiller 8kw To 16kw

Features

  • R22 refrigerant,

  • DANFOSS world famous Hermetic scroll compressor,

  • Cast iron pump,

  • Stainless steel built-in tank,

  • Door mounted disconnect switch,

  • Original Schneider electrical components,

  • Standard operating and safety controls

  • Ventilated control cabinet

  • Mounted Casters

  • Indoor operation

  • Water-proof electrical chamber

  • Removable panels for easy service access

  • Tank level alarm/switch

  • high COP: up to 3.4

Specifications

 Model

 HTIE-3A

 HTIE-4A

 HTIE-5A

 HTIE-6A

 nominal cooling capacity

 kcal/h

 6803

 10449

 11920

 13091



 kw

7.91

 12.15

 13.86

 16.22

 Max power consumption

 kw

 3.37

 4.17

 5.68

 6.38

 power source



 3PH  380V-415V  50HZ

 refrigerant

 type



 R22



 control



 Thermostatic expansion valve

 compressor

 type



 hermetic scroll



 power

 kw

 2.7

 3.5

 4.55

 5.25

 condenser

 type



 finned copper tube + low noise outer rotor fan

 evaporator

 type



 Copper coil built-in storage tank



 coolant flow

 m3/h

 1.36

 2.09

 2.22

 2.6



 Tank volume

 liter

 50

 60

 60

 110



 inlet and outlet

 inch

 1

 1

 1

 1

 dimension

 length

 mm

 980

 980

 1120

 1120



 width

 mm

 560

 560

 610

 610



 height

 mm

 1320

 1320

 1390

 1390

 weight

 kg

 132

 145

 165

 183
