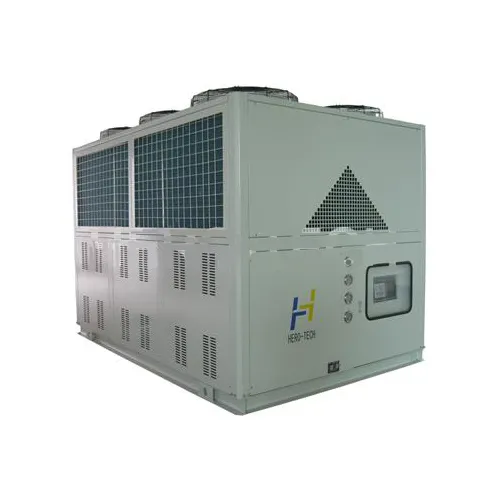

Screw Chiller AIR COOLED 140kw To 220kw

Screw Chiller AIR COOLED 140kw To 220kw

Features

  • W shape aluminum fin type condenser, assuring adequate heat exchanging area within smaller unit size

  • High efficient evaporator with internal thread copper tube.

  • Large air volume axial fan with metal blades. Motor separated from net-cover, fixed on exhaust port by metal

  • Siemens PLC control, LCD touch screen interface.

  • Standard design charged R22, CFC Free R407C, R410A,R404A,R134A for option. 380V-415V/50HZ 3PH for standard design. Different design on customers' request.

Specifications

Model

HTS-170A

HTS-190A

HTS-220A

nominal cooling capacity

kw

167

184

216

power source



3PH  380V  50HZ

refrigerant

type



R22



control



Thermostatic expansion valve

compressor

type



Semi-hermetic screw



power

kw

67

73

82

condenser

type



finned copper tube + low noise outer rotor fan

evaporator

type



Shell and tube



Flow rate

m3/h

28.7

32.2

37.2



inlet and outlet

inch

4

4

4

dimension

Length

mm

2950

3200

3500



Depth

mm

1950

1950

1950



Height

mm

2200

2200

2200

weight

kg

2200

2350

2550
