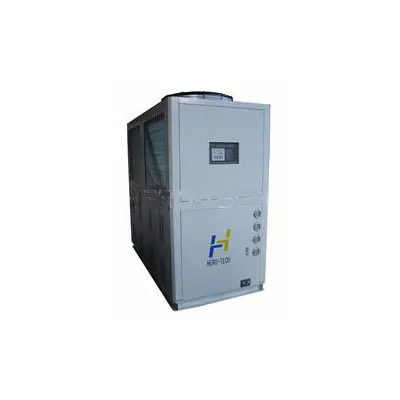

Low Temperature Chiller 25HP 40HP

Low Temperature Chiller 25HP 40HP

Features

  • Air Cooled Packaged Low Temperature Chiller (HTLT-A)

  • Brand:HERO-TECH

  • Model:HTLT-25AD,HTLT-30AD,HTLT-40AD

  • Type:Air-Cooled

  • Certification:CE, UL, Other

  • Cooling Capability(kw):8KW TO 60KW

Specifications

Model

HTLT-25AD

HTLT-30AD

HTLT-40AD

nominal cooling capacity

-10C

kw

32.2

39

52



-20C



20.8

24.4

30.8



-30C



12.1

14.3

19



-35C



8.3

10.1

13.35

power source



3PH  380V-415V  50HZ

refrigerant

type



R22/R404A/R507



control



Thermostatic expansion valve

compressor

type



Semi-hermetic piston



power

kw

9.37*2

11.3*2

30

condenser

type



finned copper tube + low noise outer rotor fan

evaporator

type



Shell and tube/plate heat exchanger



inlet and outlet

inch

2-1/2

2-1/2

3

dimension

length

mm

2150

2150

2650



width

mm

1050

1050

1200



height

mm

2100

2100

2200

weight

kg

920

1080

1125
