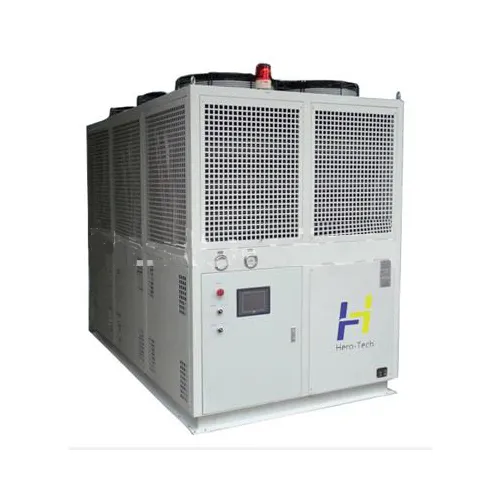

Low Temperature Screw Chiller -200HP To 280HP

Low Temperature Screw Chiller -200HP To 280HP

Model

HTSL-500AD

HTSL-600AD

HTSL-720AD

nominal cooling capacity

-10C

kw

336

402

478



-20C



224

266

318



-30C



166

200

236

power source



3PH  380V  50HZ

refrigerant

type



R22�R404A



control



Thermostatic expansion valve

compressor

type



Semi-hermetic screw



power

kw

95*2

115*2

133*2

condenser

type



finned copper tube + low noise outer rotor fan

evaporator

type



Shell and tube



inlet and outlet

inch

6

8

8

dimension

Length

mm

7800

8500

10500



Depth

mm

2200

2200

2200



Height

mm

2350

2350

2350

weight

kg

4850

5300

5550

Specifications
