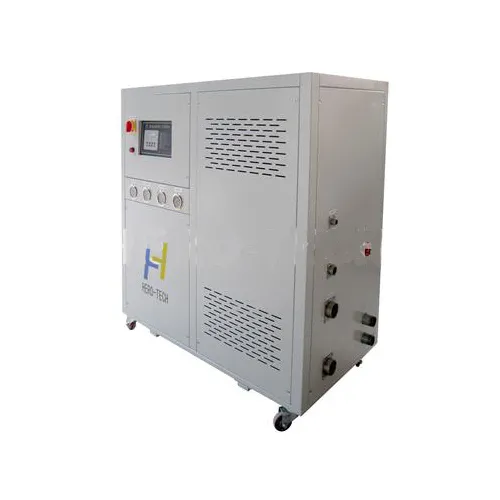

Enivironmental Water Cooled Industrial Chiller 9KW to 48kw

Enivironmental Water Cooled Industrial Chiller 9KW to 48kw

Features

  • R22 refrigerant,
  • Hitachi / SANYO world famous compressor,
  • Cast iron pump,
  • Stainless steel built-in tank,
  • Door mounted disconnect switch,
  • Original Schneider electrical components,
  • Standard operating and safety controls
  • Ventilated control cabinet
  • Mounted Casters (3HP to 12HP)
  • Indoor operation
  • Water-proof electrical chamber
  • Removable panels for easy service access
  • Tank level alarm/switch
  • high COP:3.30--3.56

Specifications

Model

HTI-3W

HTI-4W

HTI-5W

HTI-6W

HTI-8WD

HTI-10WD

HTI-12WD

HTI-15WD

nominal cooling capacity

kw

9.45

13.5

15.4

17.7

24

30

34

48

Ton

2.693

3.84

4.39

5.03

7.68

8.53

9.95

13.65

Max power consumption

Kw

9.45

13.5

15.4

17.7

27

30

11.9

16.25

power source



3PH  380V  50HZ

refrigerant

type



R22

control



Thermostatic expansion valve

compressor

type



Hermetic scroll

power

kw

2.7

3.5

4.55

5.2

3.5*2

4.55*2

5.2*2

7*2

condenser

type



finned copper tube + low noise outer rotor fan

Cooing water flow

m3/h

2.1

2.6

3.5

3.6

5.2

6.76

7.9

10.7



Inlet & outlet

Inch

1-1/2

1-1/2

1-1/2

1-1/2

1-1/2

1-1/2

1-1/2

2

evaporator

type



Copper coil built-in storage tank

coolant flow

m3/h

1.58

2.3

2.58

3

4.6

6.2

5.85

8.25

Tank volume

liter

60

60

60

90

150

200

200

330

inlet and outlet

inch

1

1

1

1

1-1/2

2

2

2

Pump

Power

Kw

0.37

0.37

0.75

0.75

1.5

1.5

1.5

2.25

Max head

M

22

22

30

30

25

25

25

28

Max flow

m3/h

5.4

5.4

8.1

8.2

8.1

13.5

13.5

25.2

dimension

Length

mm

850

850

1050

1050

1250

1250

1250

1650

Depth

mm

480

480

550

550

680

680

680

850

Height

mm

1020

1020

1150

1150

1380

1380

1380

1650

weight

kg

125

135

160

180

230

260

330

420
