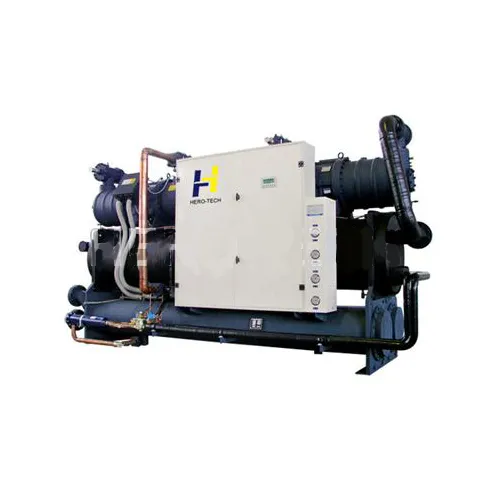

Water Cooled Screw Chiller HTS-W 100KW TO 350KW

Water Cooled Screw Chiller HTS-W 100KW TO 350KW

Design features

  • Well Known Brand Compressor

  • Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor. The latest 5 to 6

  • patented screw rotor profile with excellent efficiency.

  • Adjustable infiniteor closely stepped capacity control, features energy efficient, stable andquiet running.

  • Most advance dpatented highest precision manufacturing process.

  • Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.

  • Wide range of refrigerant for option, including R134a, R407c and R22(R404a, R507c upon request).

Specifications

Model

Cooling capacity

(kw)

Compressor power(kw)

Evaporator

Condenser

Dimension

(L*W*H)

(mm)

Weight (kg)







Coolant flow(m3/hr)

Coolant in/out(inch)

Cooling water flow(m3/hr)

Cooling water  in/out(inch)



N.W

R.W

HTS-130W

125

30

21.5

3

26.7

3

2500*780*1650

900

1050

HTS-160W

164

38

28.2

3

34.7

3

2550*780*1650

1050

1200

HTS-180W

178

42

30.6

4

37.8

4

2600*780*1650

1200

1400

HTS-220W

217

51

37.3

4

46.1

4

2750*780*1650

1550

1800

HTS-240W

239

56

41.1

4

50.7

4

2800*950*1800

1800

2100

HTS-280W

281

63

48.3

4

59.2

4

2800*950*1950

1900

2200

HTS-330W

325

73

55.9

5

68.4

5

2900*950*1950

2050

2350

HTS-350W

352

80

60.5

5

74.3

5

3000*1200*1580

2350

2530

HTS-390W

387

88

66.6

5

81.7

5

3000*1200*1580

2500

2700

HTS-460W

461

103

79.3

5

97

5

3100*1250*1630

2500

3000

HTS-490W

487

109

83.7

5

102.5

5

3300*1380*1630

2650

3100

HTS-580W

577

127

99.2

5

121.1

5

3500*1380*1750

2850

3350

HTS-600W

600

131

103.2

6

125.7

6

3800*1380*1750

3150

3750

HTS-700W

698

151

120

8

146

8

3900*1380*1750

3350

4000

HTS-770W

766

167

131.7

8

160.4

8

4100*1450*1780

3620

4300

HTS-820W

818

177

140.7

10

171.1

10

4300*1480*1780

3850

4600

HTS-920W

922

199

158.6

10

192.8

10

4500*1480*1780

4160

5000
