Air Cooled Screw Chiller 500kw To 720kw

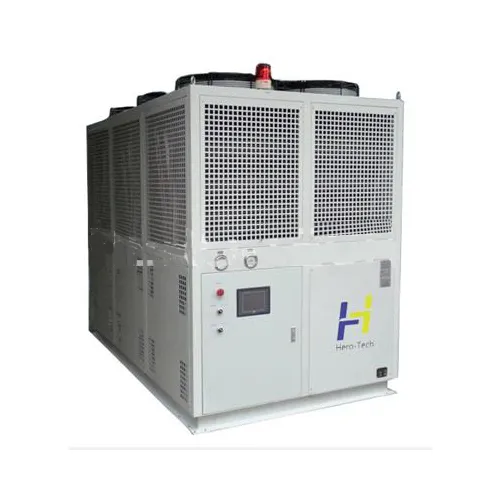

Air Cooled Screw Chiller 500kw To 720kw

Features

Well Known Brand Compressor



  • Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency.



  • Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running.



  • Most advanced patented highest precision manufacturing process.



  • Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.



  • Wide range of refrigerant for option, including R134a, R407c and R22(R404a, R507c upon request).

Microprogramming Control System



  • Industrial PLC centralized control combined with compressor capacity control system, precisely monitor.



  • Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.



  • Optional operation language, menu leading, unit running state easy to adjust.

Easy Installation, Reliable Running



  • Closely stepped start-up, minimize impact to electricity.



  • Steady and safe running, low vibration, easy for installation.



  • Compact structure, less space demand and light in weight, easy for transport and installation.



  • Completely wired, inspected and tested pre-delivery, saving installation time and cost.

Specifications





Model

Cooling capacity(kw)

Compressor power(kw)

Evaporator

Condenser

Dimension(L*W*H)(mm)

Weight (kg)







Coolant flow(m3/hr)

Coolant in/out(inch)

Fan power(kw)

Air volume(m3/hr)



N.W

R.W

HTS-220AD

218

37.3*2

37.5

4

1.2*6

80000

3200*1950*2200

2500

2650

HTS-280AD

284

46.6*2

48.8

4

0.8*8

100000

4000*1950*2200

2950

3440

HTS-310AD

310

51*2

53.3

5

1.2*8

116000

4800*1950*2200

3350

4050

HTS-380AD

380

62*2

65.3

5

0.8*10

135000

5500*1950*2200

3700

4550

HTS-420AD

416

68*2

71.5

5

1.2*10

148000

6200*2000*2200

4100

4750

HTS-490AD

490

76*2

84.3

6

1.2*12

165000

6800*2000*2200

4350

5130

HTS-570AD

566

88*2

97.3

6

0.8*16

200000

7800*2200*2350

4750

5400

HTS-610AD

612

96*2

105.2

8

1.2*16

225000

8500*2200*2350

4930

5560

HTS-680AD

674

107*2

115.9

8

1.2*16

236000

8500*2200*2350

5200

5750

HTS-800AD

800

124*2

137.6

8

1.5*16

276000

10500*2200*2350

5450

6150
